Description

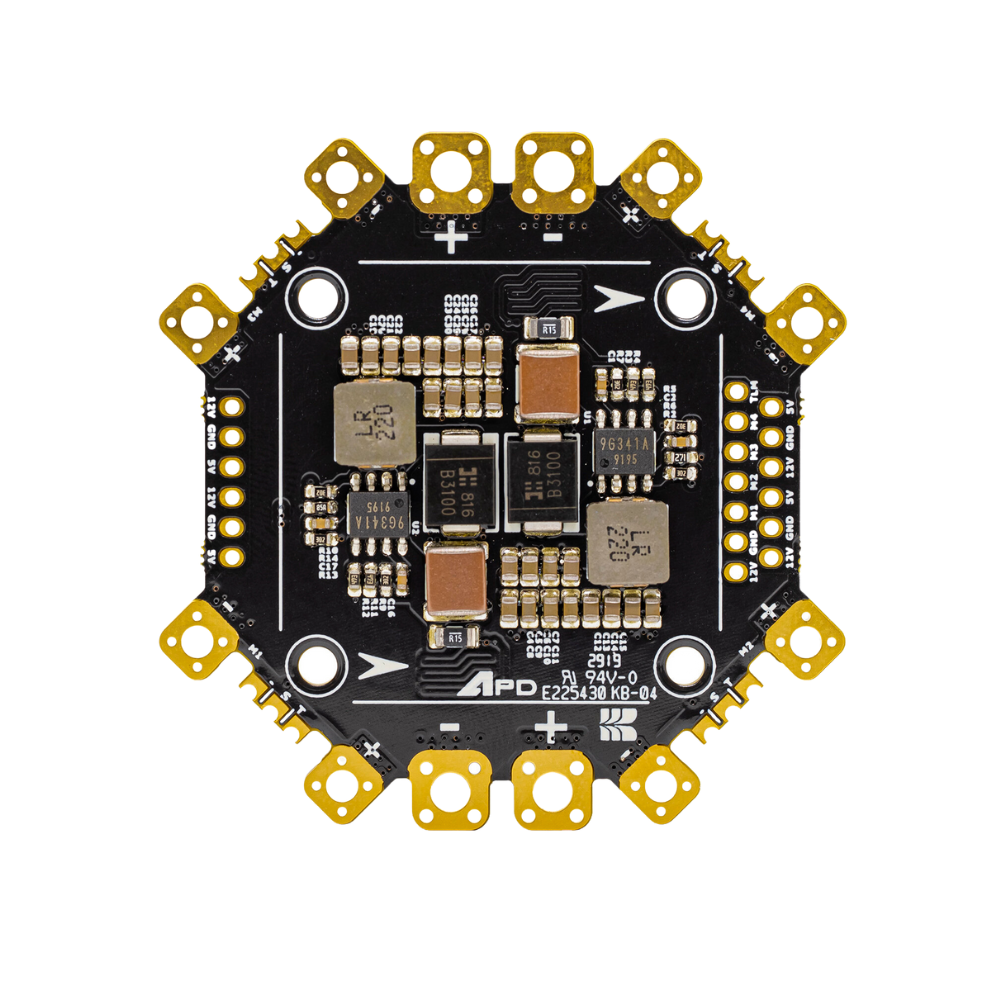

APD PDB500[X]

The APD PDB500[X] is designed for high voltage and high current applications. It consists of 8 layers of heavy copper to sustain maximum current demand whilst dissipating minimal heat. This PDB can sustain up to 125A continuous to each ESC leg. Also features 12V 3 Amp and 5V 3 Amp regulators with a maximum of 14S (60V) input.

Signal and telemetry lines are sandwiched between the negative (GND) layers to shield them from switching noise at high power levels.

The PDB500 has double-sided main input power pads which can be soldered or bolted to (not recommended for high power). It allows for flight controller mounting with standard 30.5mm x 30.5mm hole spacing. Solder tabs extend off the PCB to allow for thermal relief to make soldering easier.

Manufactured using ISOLA 185HR high-performance dielectric glass fibre to sustain continuous high-temperature scenarios.

FEATURES:

• 4S-12S input

• 8 Layers of 4oz copper to each ESC

• 12V @ 3A switching regulator

• 5V @ 3A switching regulator

• Overcurrent and short circuit protection on both 5V and 12V regulators

• Two main power inputs, modular battery

• Thermal relief on all solder tabs to allow for easier soldering

• 2.5mm thickness for strength and reliability

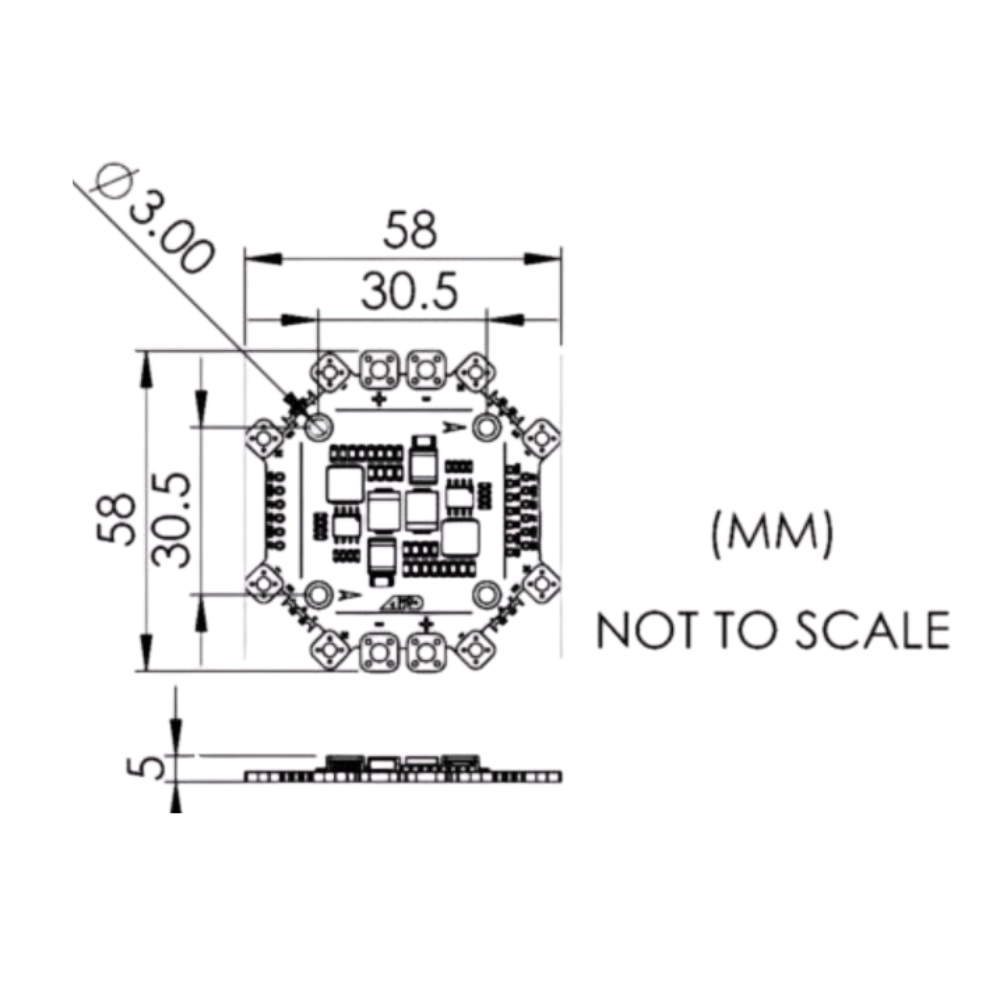

• 58mm x 58mm in size

• PCB rated for 180°C continuous

• ISOLA 185HR dielectric glass fibre for maximum thermal performance

• Designed and manufactured in Australia

• Weight: 0.05kg

• Dimensions: 58x58x5mm

Documentation: docs.powerdrives.net

CAD Model: PDB500 CAD Model

PACKAGE CONTENTS:

• 1 * APD PDB500[X]

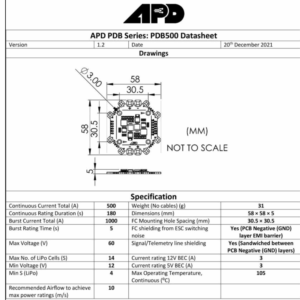

APD_PDB_3
