Description

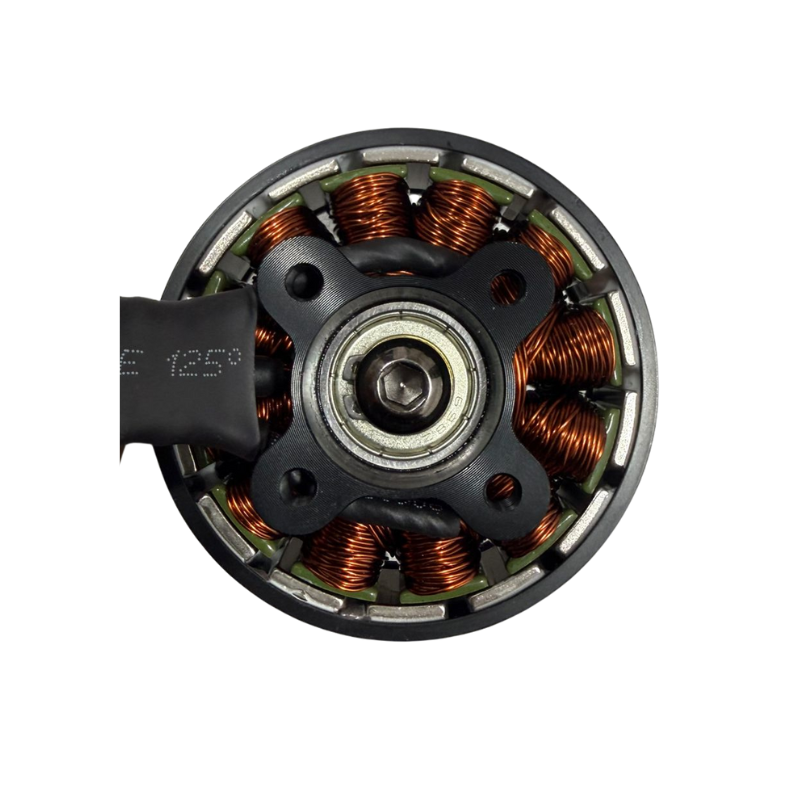

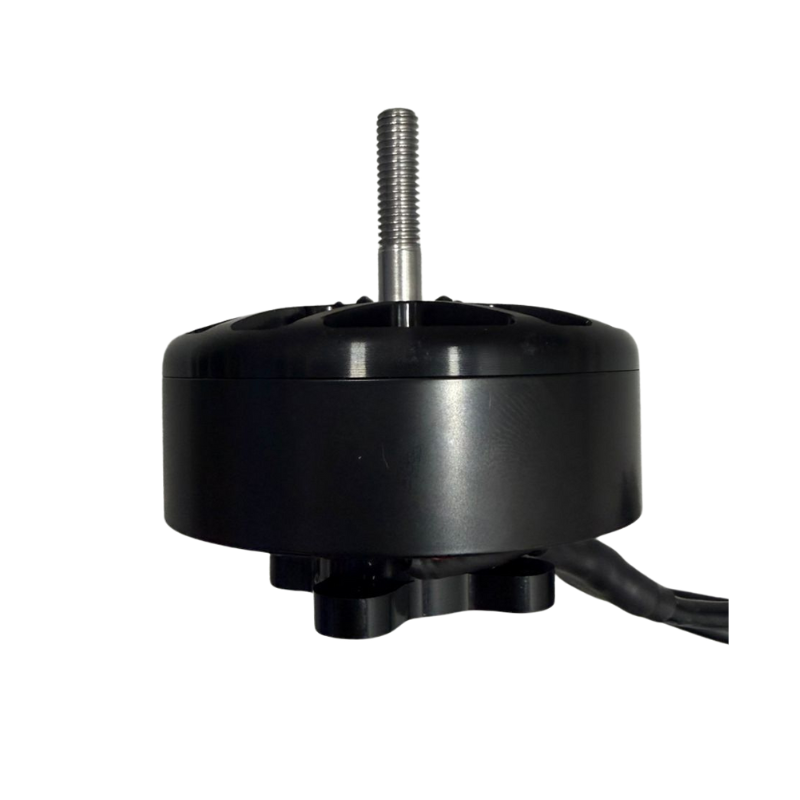

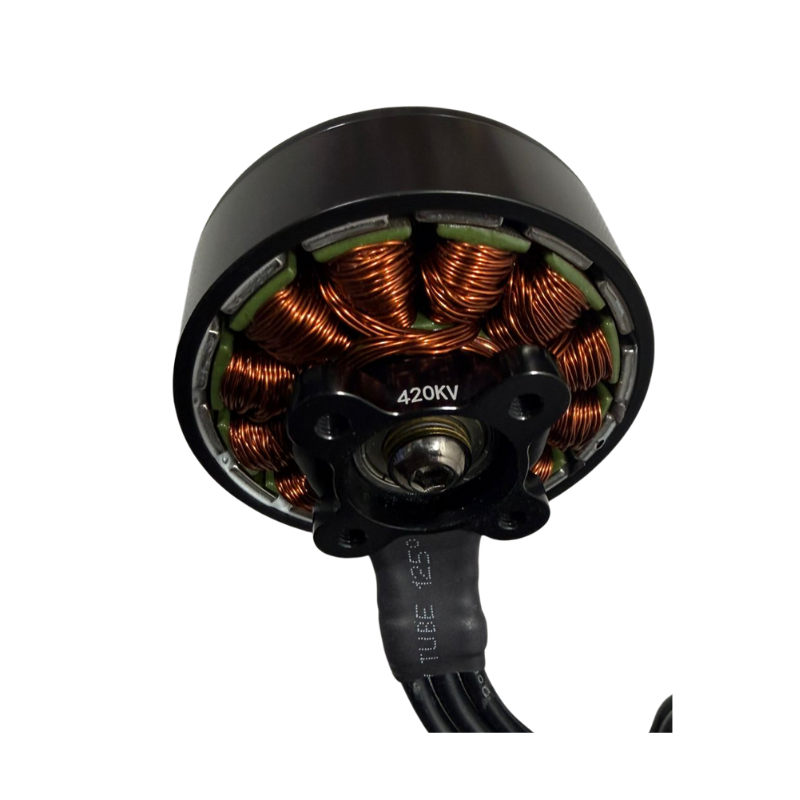

AZ 5315-420KV BRUSHLESS MOTOR FOR 15INCH FRAME

AZ 5315 420Kv is a large brushless motor designed for use with 6–8S LiPo batteries and 13–15″ propellers. Thanks to its robust construction and high performance, it is well-suited for heavy long-range drones or cinelifters.

The motor features a 12N14P configuration, thick 13AWG wires with a length of 15cm, and a 6mm shaft for the propellers. At full power, the motor delivers a thrust of over 6kg.

SPECIFICATIONS:

• Size: 5315
• Kv: 420
• Configuration: 12N14P
• Dimensions: φ61.5x64mm
• Shaft: 6mm
• Shaft length: 26mm
• Mounting holes: 30mm M4
• Cable: 15cm 13AWG
• Weight: 310g (including cable)

PACKAGE CONTENTS:

• 1 * AZ 5315-420KV BRUSHLESS MOTOR
