Description

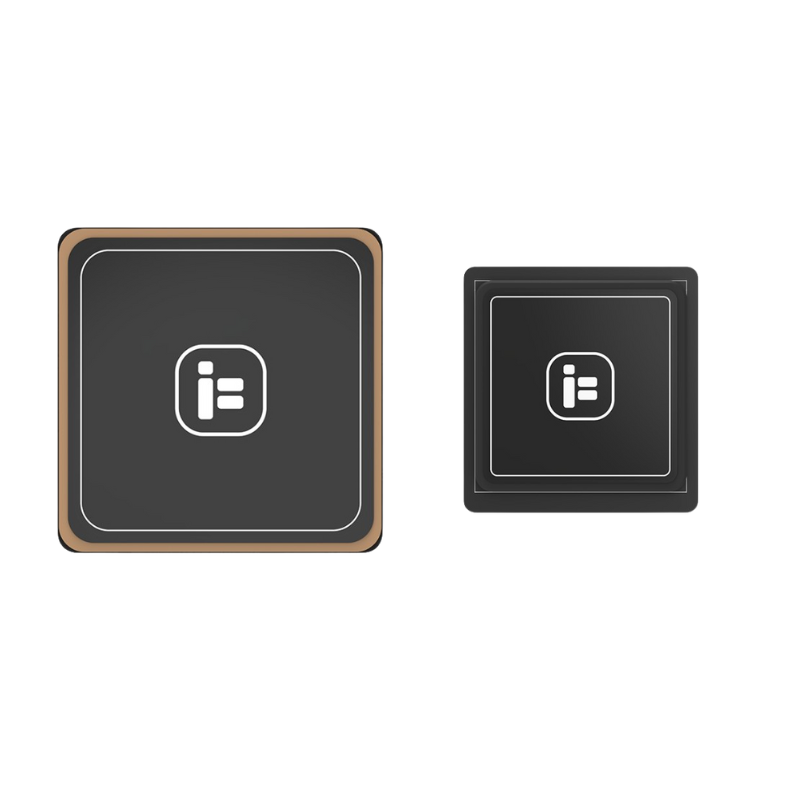

BLITZ M10 GPS V2
The newly upgraded iFlight BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satellite search with the 10th generation chipset. This technological advancement provides users with a more reliable and efficient GPS experience. Additionally, this GPS also has a built-in compass.
Features
- UBLOX M10 chip, low power consumption, strong signal
- Compass module QMC5883L integrated
- Built-in farad capacitor for faster hot start
- High-precision positioning
- Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
- 10 Hz Refresh rate
- Built-in Flash
Specifications
- Compass module: QMC5883L
- Baud Rate: 9600-460800 / 4800bps-921600bps (Default – 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold start: 27s
- Hot start: 1s
- Maximum height: 80000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Refresh Rate: 10 Hz
- GPS patch antenna size: 18.2 x 18.2 x 4 mm / 25 x 25 x 6 mm
- Total dimensions: 20 x 21 x 8 mm / 25 x 25 x 11 mm
- Weight: 8g / 16 g
- Input Voltage: 3.3-5.5 V
- GPS pin definition: RX/TX UART
- Compass pin definition: SDA/SLA
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Compatibility:
0*21*8(Mini Version) Compatibility:
Single-hole TPU mount:
- Chimera7 Pro v2
- iH3 O3
- Nazgul Evoque F4/F5/F6
- XL10 v6
- BOB57 HD
- Nazgul XL5/DC5 ECO V1.1
Dual hole TPU mount:
- Nazgul5 V3
- Nazgul XL5/DC5 ECO V1
- Taurus X8 Pro/V3
- ProTek60 Pro
GPS TPU mount is not required:
- Helion 10
25*25*6 Version Compatibility:
- Centurion X8 Frame Kit
- Taurus X8 Max
PACKAGE CONTENTS:
- 1 * BLITZ M10 GPS V2 (20*21*8MM / 25 * 25MM * 6MM)
