BLITZ MINI F7 V1.1 FLIGHT CONTROLLER

The next generation of Flight controllers and ESC’s from iFlight have arrived. Currently being used in their BNF quads such as the Evoque BNF. These new flight controllers are equipped with a plug and play connectors making connecting your  video transmitter, radio receiver, and other periphery sensors a breeze. They also make diagnosing issues in the field much easier with status indicator LED’s that let you know in seconds if you are having a problem with the 3.3V, 5V, or VBat.

FEATURES

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging

CHANGELOG

• October 20, 2023: Flight control Blackbox flash capacity changed from 16MB to 8MB

SPECIFICATIONS

• MCU: STM32 F722
• Gyro: BMI270
• Barometer: DPS310
• OSD Chip: AT7456
• Flash: 8MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA/SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
• Dimensions: 30.5×27 mm
• Weight: 5g

WIRING SUGGESTION

• UART 1 for VTX HD / Analog
• UART 2 for a Receiver
• UART 3/4/5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemetry

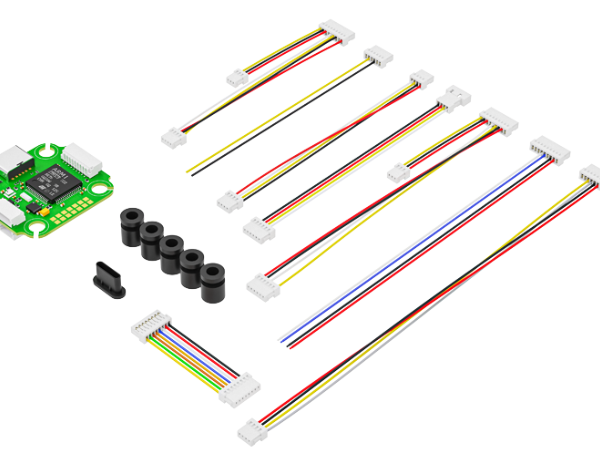

PACKING LIST

• 1 x BLITZ Mini F7 V1.1 Flight Controller
• 1 x FC connectors
• 1 x Silicon grommets
