ETHIX MR STEELE STOUT 2307 MOTOR V5-1950KV BLUE

The Ethix Mr. Steele Stout 2307 V5 1950KV Motor features an increased stator size and a redesigned motor bell setup for more durability. This new iteration of a trusted power train formula follows a lightweight ethos with increased power and torque where it counts. Attaining a high power-to-weight ratio cannot overstate when building a high-performance aircraft. The V5 Stout adds confidence with even heavier HD cameras.

V5 UPDATES

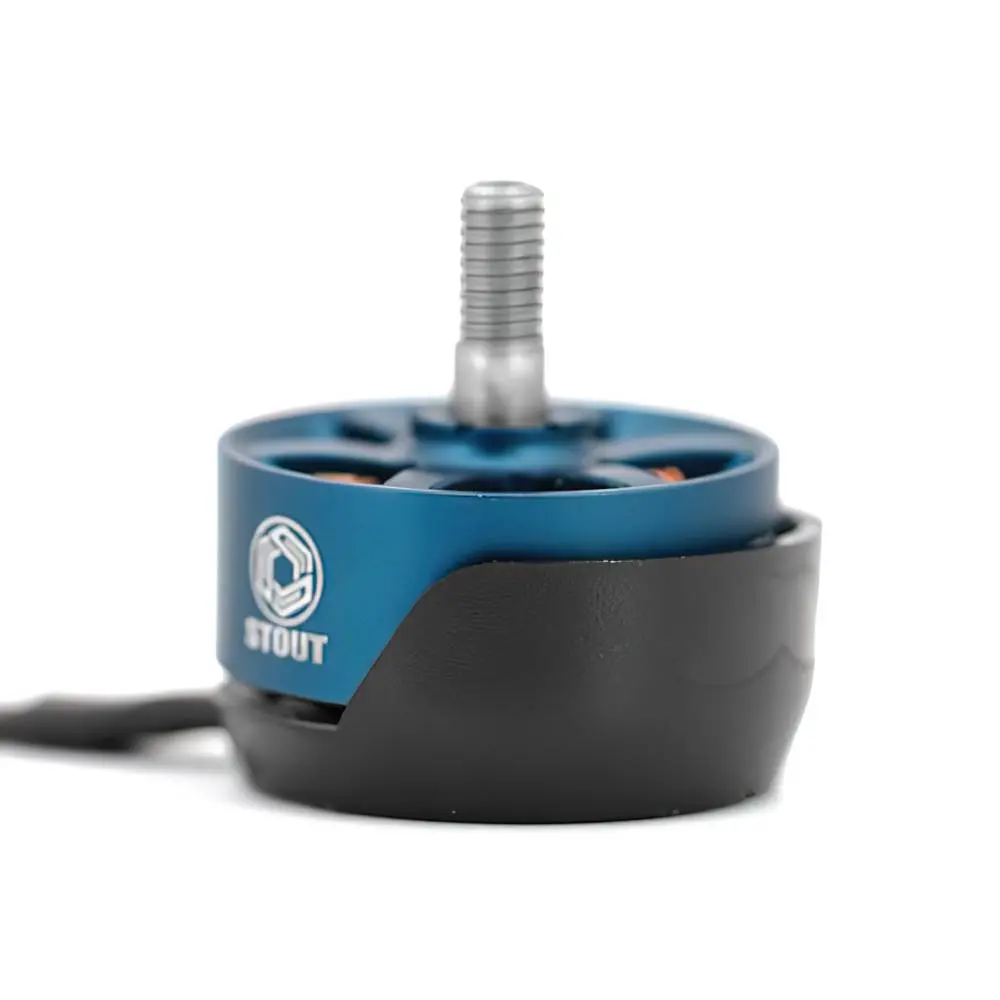

• Complete Interchangeable motor pants redesign with better crash/low-temperature resistance, better gap fitment, and more protection coverage for the “tall pants”
• Complete bell redesigned with durability and smoothness in mind
• Base redesign 16×16 (only) mounting holes
• Increased EFFICIENCY & POWER
• Better assembly tolerances
• Increased stator size 2307
• Overall QC improvements

FEATURES:

• Motor weight 33.8g (full-length cables) compared to Stout V1 at 31.5g
• Pants Weight – Low – 1g vs (0.8 v3) | Tall – 2g vs (1.8 v3)
• Thick single-strand copper winding
• Better assembly tolerances
• Eco-Friendly packaging
• 9mm steel bearings

SPECIFICATIONS:

• Motor Overall Dimensions: 28.6mmx18.2mm
• Stator Size (Diameter): 23mmx7mm
• Base Mounting Pattern: 16x16mm
• Base Mounting Thread: M3 Thread
• Internal Resistance (Rm): 60mΩ
• Wire Spec (AWG): 20#-135mm
• Weight (With Wires)(g): 36.5g
• Shaft Length (mm): 10.5mm
• Shaft Diameter (mm): 4mm
• Max Burst Current (A): 60A
• Magnets: N52SH Curved
• Windings: 13turn DLRK
• Max Current (A): 45A
• Shaft material: Steel
• Bearing: NMB684
• Cells (Lipo): 6S
• KV: 1950kv
• Color: Blue

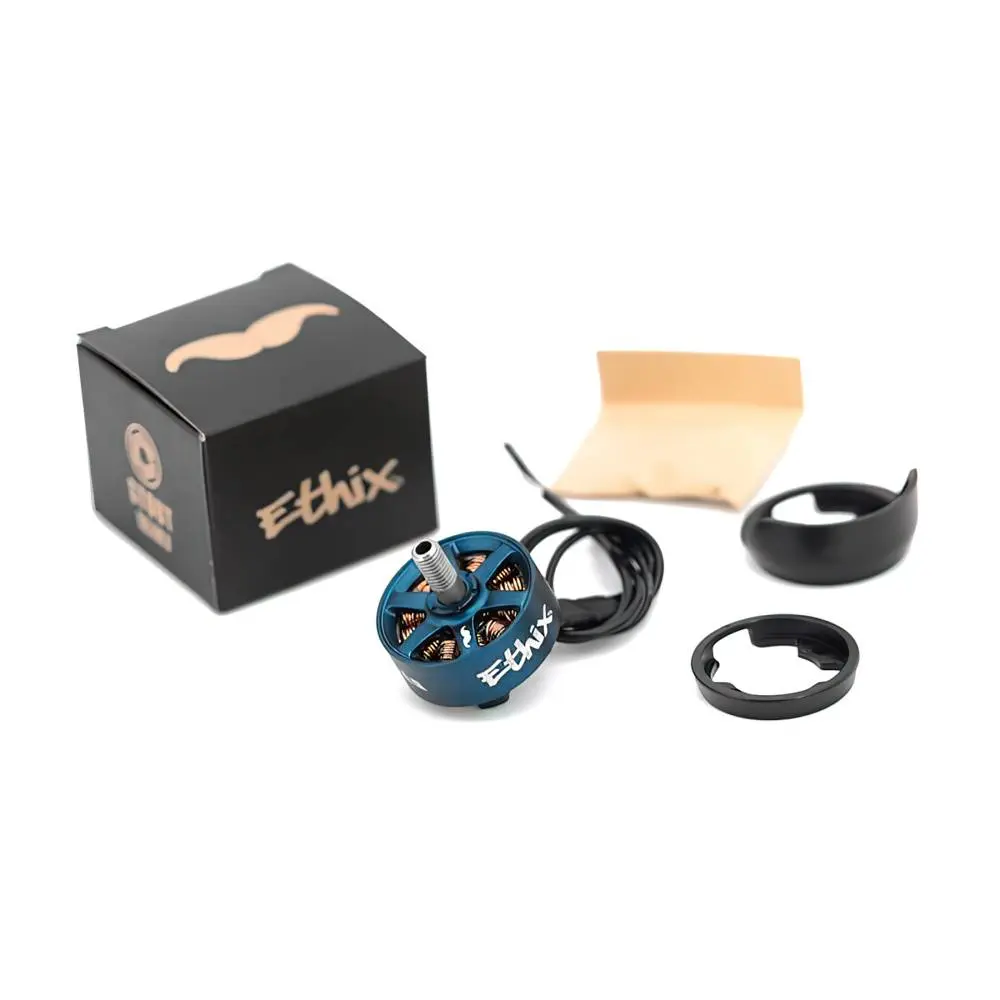

PACKAGE CONTENTS:

• 1x Ethix Mr Steele Stout 2307 Motor V5 – 1950KV (Blue)
• 1x Hardware Set
• 1x Pants Set
