Description

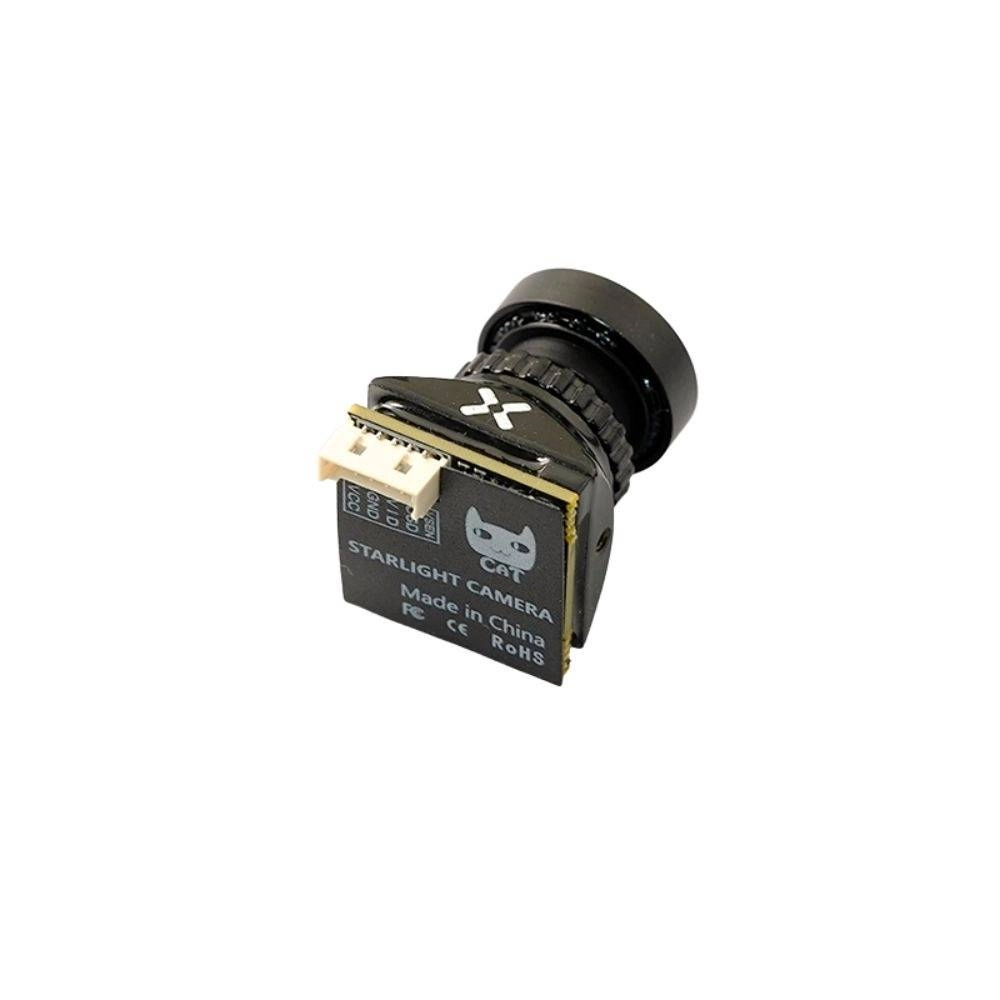

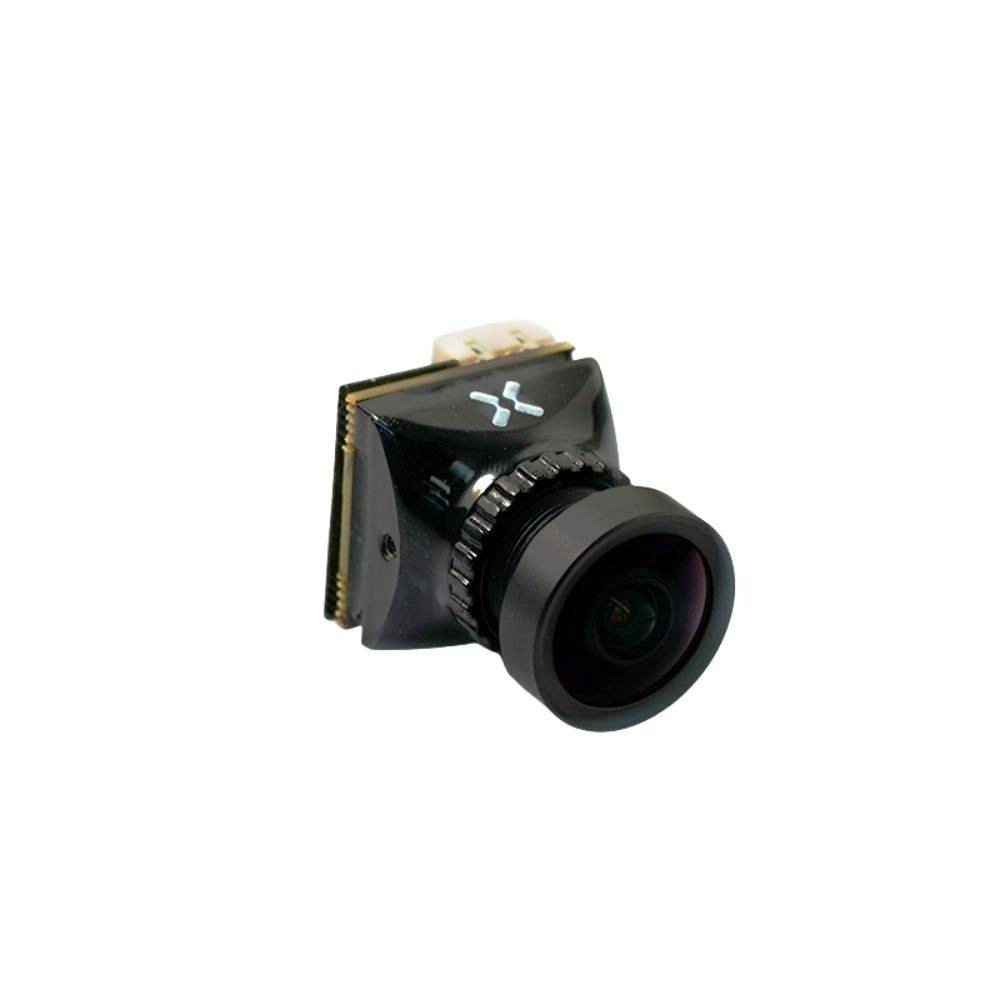

FOXEER MICRO CAT 4 1200TVL STARLIGHT FPV CAMERA

The Foxeer Micro Cat 4 Starlight camera features a Sony 1/3″ CMOS sensor with 1200TVL resolution and a low-light 2.1mm lens for clear, detailed video. It supports 4:3 or 16:9 aspect ratios, PAL/NTSC systems, and includes wide dynamic range, 3D noise reduction, and on-screen flight OSD.

FEATURES:

• Sony 1/3″ CMOS sensor for high-resolution video
• 1200TVL output with low-light 2.1mm lens
• Switchable 4:3 and 16:9 aspect ratios
• Wide dynamic range and 3D noise reduction
• On-screen display for voltage, camera title, and time

SPECIFICATIONS:

• Sensor Type: Sony 1/3″ CMOS
• Aspect Ratio: 4:3 (Default) / 16:9 Switchable
• TV System: PAL (Default) / NTSC Switchable
• Resolution: 1200TVL
• Lens: M12 2.1mm Low Light Lens
• Field of View (4:3): H: 95° / V: 72° / D: 120°
• Field of View (16:9): H: 95° / V: 53° / D: 110°
• Shutter Speed:
• PAL: 1/25 ~ 1/10000 sec
• NTSC: 1/30 ~ 1/10000 sec
• Video Output: CVBS Analog
• Minimum Illumination: 0.00001 Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• Day/Night Mode: EXT / Auto / Color / B&W
• Flight OSD: Voltage / Camera Title / Time
• Input Voltage: 5V–20V
• Power Consumption: 95mA ±15% @ DC 12V
• Operating Temperature: -10°C to 50°C (RH 90% Max)
• Operating Humidity: 20%–80%
• Storage Temperature: -20°C to 70°C
• Dimensions: 19 × 19mm
• Weight: 11.8g (excluding cable)
• Language Support: English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek

PACKAGE CONTENTS:

• 1x Foxeer Micro Cat 4 1200TVL StarLight FPV Camera
• 1x OSD 2-Pin Cable
• 1x Hardware Kit
• 1x Servo Cable
• 1x OSD Board
