Description

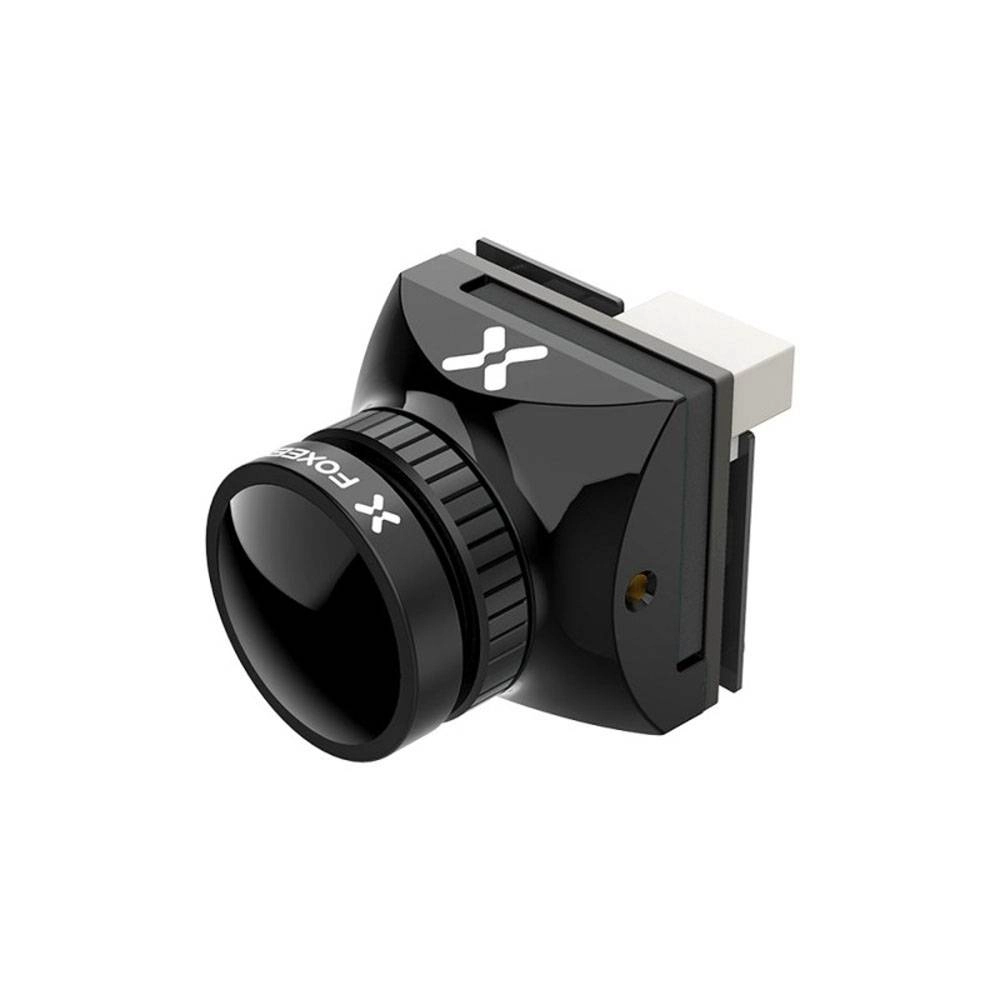

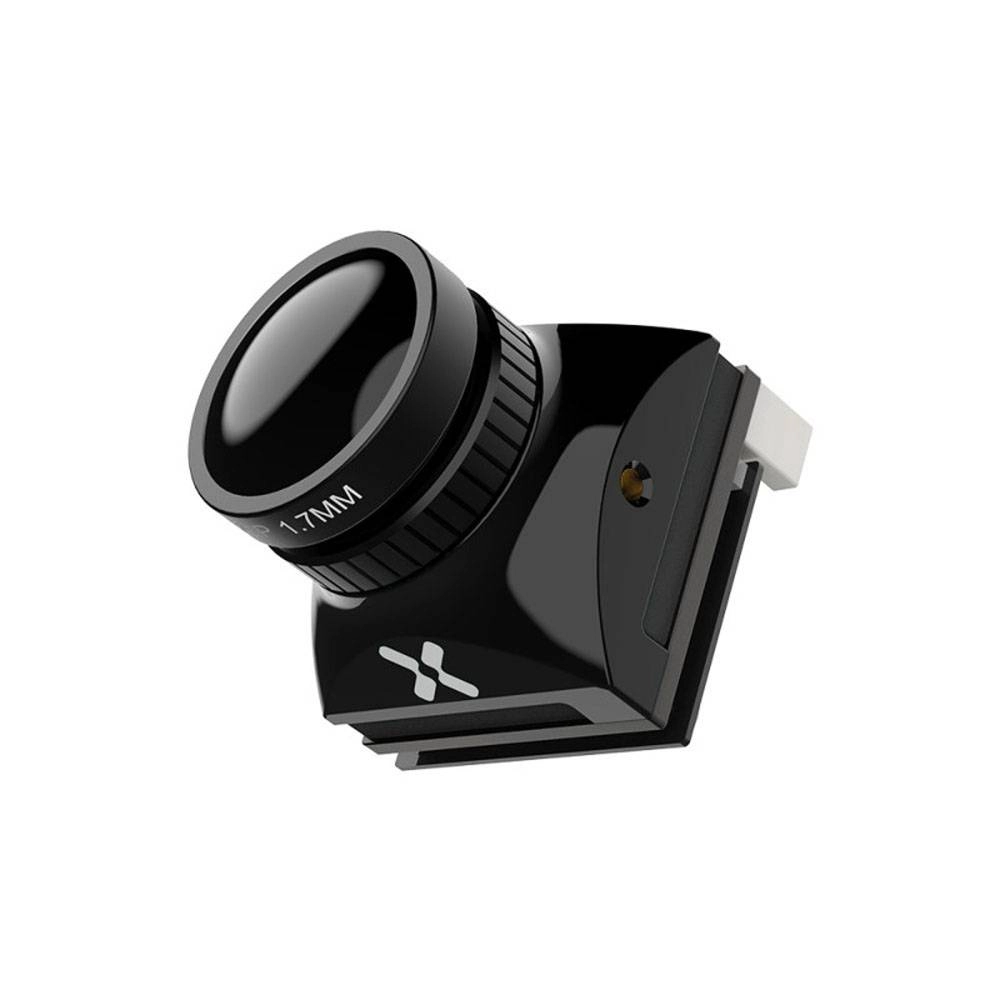

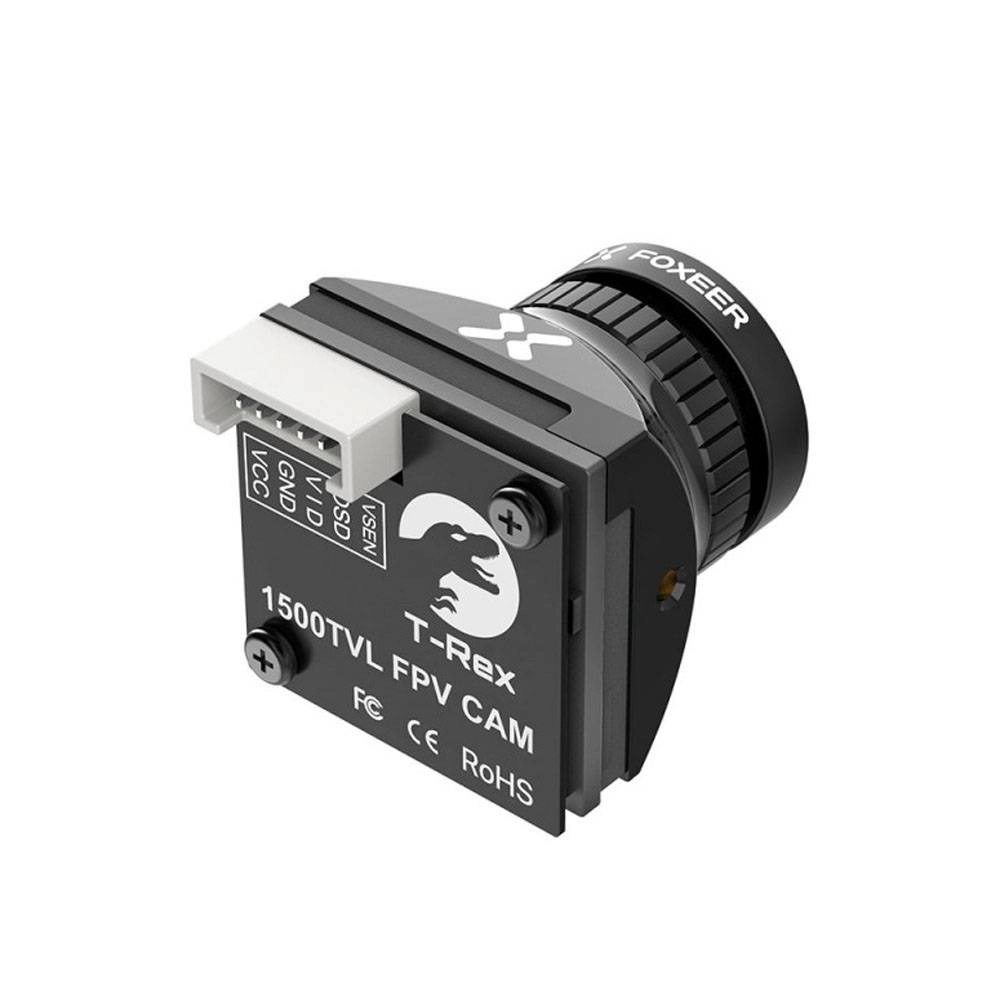

Foxeer T-Rex Micro 1500TVL 1.7mm FPV Camera

The Foxeer T-Rex Micro is a 19x19mm FPV camera by Foxeer that features a 2MP CMOS sensor, 1500TVL resolution, 6ms latency, NTSC/PAL switchable, auto white balance, and many other cool features!

Specifications

• Sensor Type: 2MP CMOS Sensor
• Scale: 4:3/16:9 Switchable
• Tv System: PAL/NTSC Switchable
• Resolution: 1500TVL
• Shutter Speed: Auto
• Flip: Up, Down, Left and Right
• Video Output: CVBS Analog Signal
• Latency: 6ms
• Minimum Illumination: 0.001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 110dB
• DAY/NIGHT: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time
• Input Voltage: 4.5V~16V
• Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
• Language: ENGLISH /中文
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Dimension: 19*19mm
• Weight: 8.6g(Exclude cable)

Includes

• 1 x Foxeer T Rex Micro FPV Camera
• 1 x OSD Board
• 4 x Bracket Screws
• 4 x Gasket Ring
• 1 x 2pin OSD Cable
• 1 x Servo Cable
