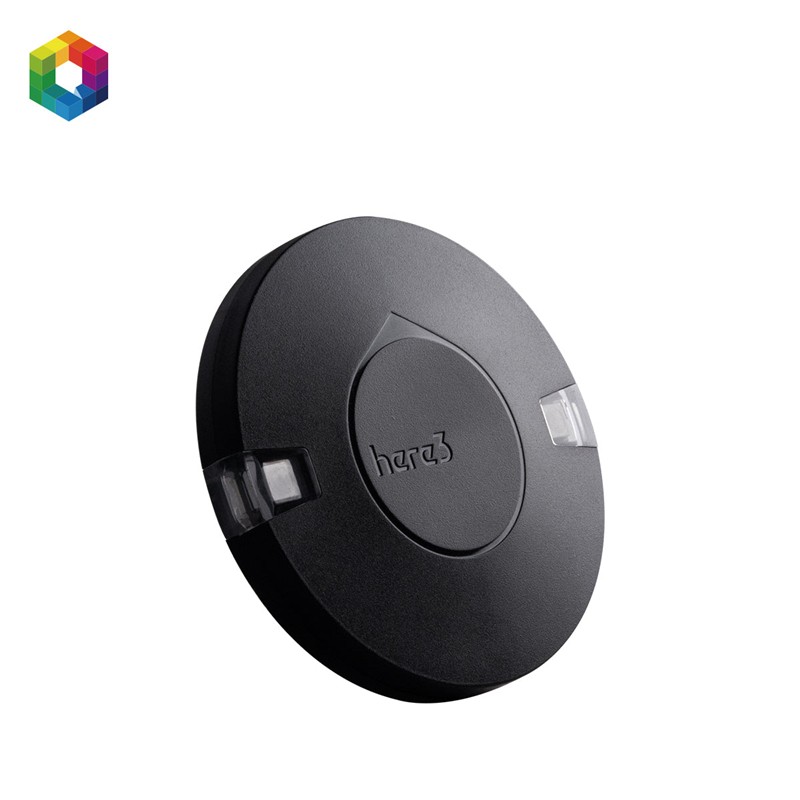

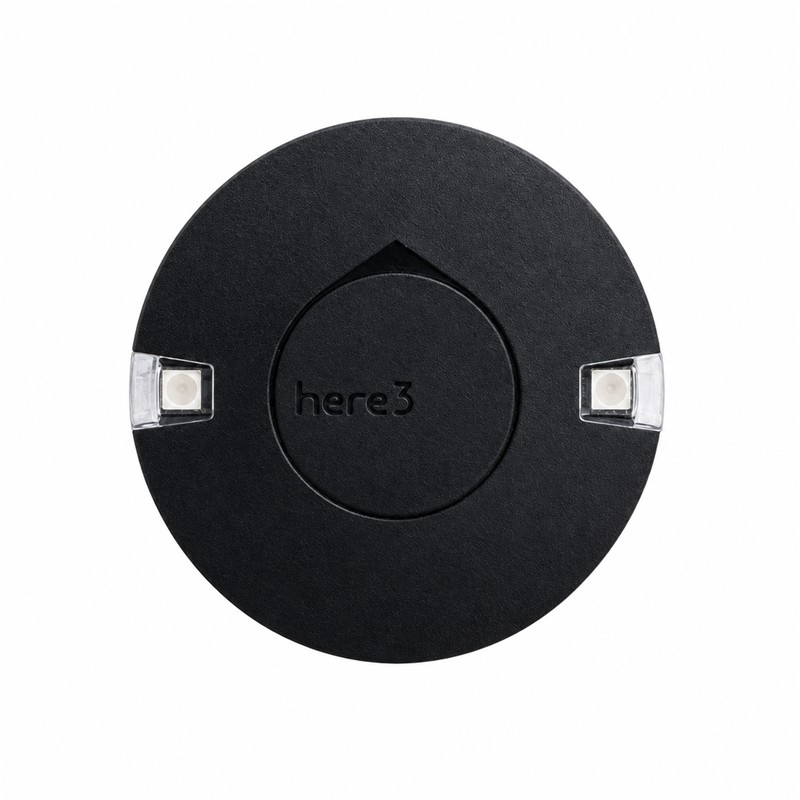

CUBEPILOT HERE3 GNSS (M8P) WITH ISTAND

The CubePilot Here3 combines a u-blox M8P-2 GNSS receiver with onboard inertial sensors and a CAN interface for vehicle navigation. This package includes the Here3 module and an iStand mounting stand.

RTK positioning requires a compatible correction source and suitable reception conditions. A base station and flight controller are not included. The housing offers improved dust and water resistance over the original Here+, but is not guaranteed waterproof.

FEATURES:

• RTK-capable receiver for centimetre-level positioning in ideal conditions.
• Tracks GPS, GLONASS and BeiDou signals.
• Built-in compass, gyroscope and accelerometer.
• Visible status LEDs and firmware update support through Mission Planner.

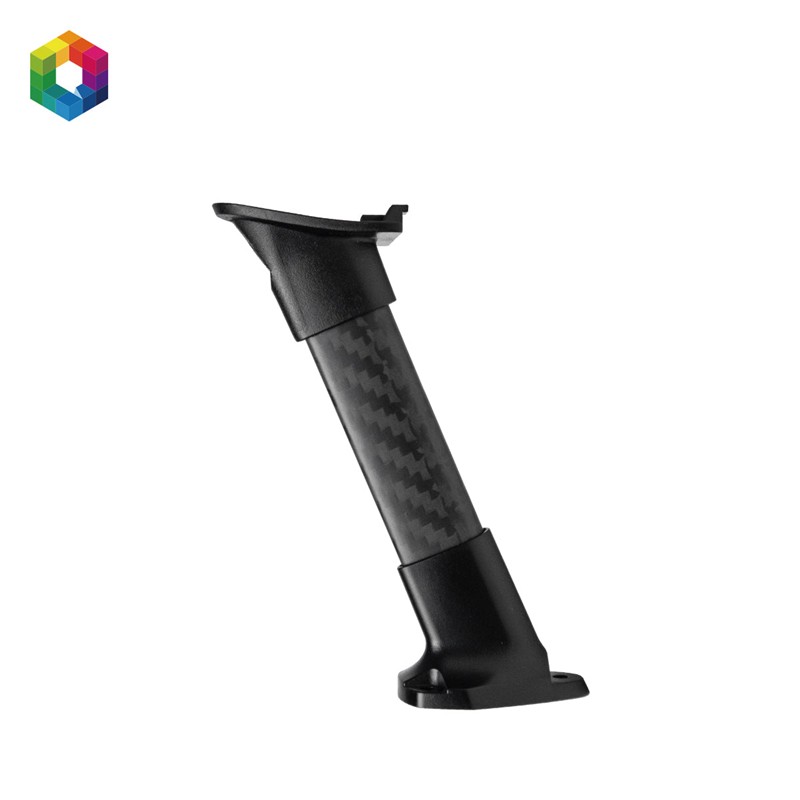

• Includes an iStand for mounting the GNSS module.

SPECIFICATIONS:

• Manufacturer: CubePilot
• Model: Here3 (M8P)
• Receiver: u-blox M8P-2
• Processor: STM32F302
• IMU: ICM20948
• Interface: DroneCAN, 1 Mbit/s
• Navigation update rate: up to 8 Hz
• Signals: GPS L1C/A, GLONASS L1OF, BeiDou B1I
• Specified positioning accuracy: 2.5 m in 3D fix; 0.025 m with RTK under ideal conditions
• Operating temperature: -40 to 85 °C
• Module dimensions: 68 × 68 × 16 mm
• Module weight: 48.8 g, excluding iStand and packaging

PACKAGE CONTENTS:

• 1 × CubePilot Here3 GNSS module
• 1 × Here3 iStand mounting stand
