Description

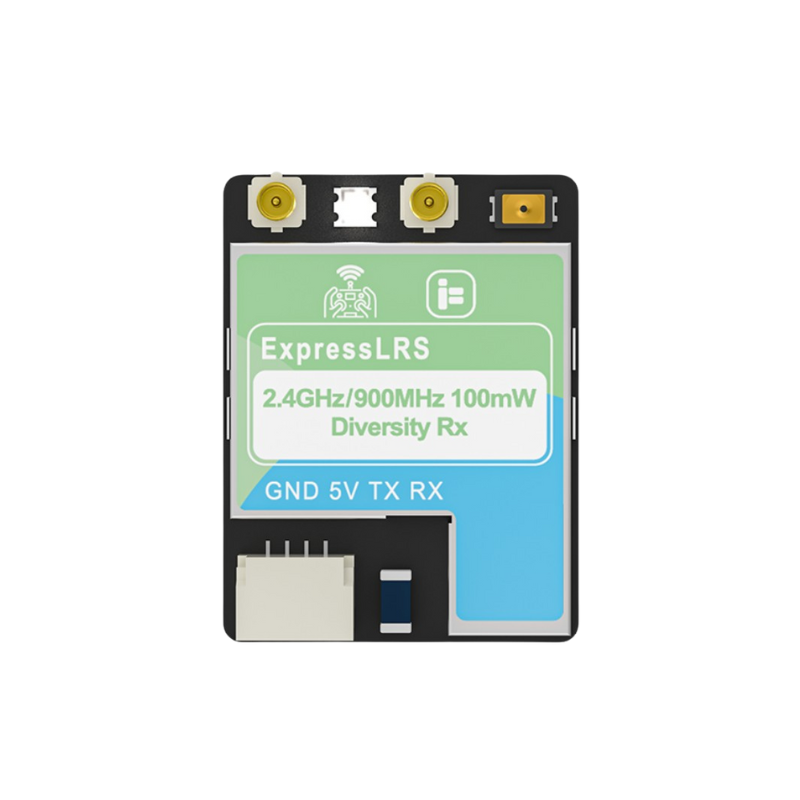

iFLIGHT ELRS100mW DUALBAND DIVERSITY GEMX RX

The iFlight ELRS Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Choose between single or dual-antenna configurations for enhanced compatibility and signal strength. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.

FEATURES:

• CXO Technology: Minimizes frequency deviation for precise and stable performance.
• Multi-Frequency Support: Compatible with 2.4GHz, 868MHz, and 900MHz for versatile use.
• Compact Design: Space-saving and lightweight for easy integration.
• Single-Sided Components: Optimizes space efficiency.
• Aluminum Heat Sink: Protects electronics and enhances interference resistance.
• SH1.0 Connector: Easy installation with robust connectivity.
• High-Power Telemetry: Supports 500mW telemetry return for stronger signals and reduced telemetry loss.

PERFORMANCE & COMPABILITY:

• Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
• Flash the latest firmware and follow the ELRS Community for updates, tutorials or contributions.

SPECIFICATIONS:

• MCU: ESP32-Pico D4
• RF: LR1121
• Receiver Type: GemX
• Telemetry power: 100mW (20dBm)
• LNA: N/A(868/900MHz) / YES (2.4G)
• Dimension:24.3*18.5*6.5mm(±0.5）
• Weight: 4.9g(±0.5g）
• Lua Script: iF GemX 100mW RX
• TCXO: Yes
• Firmware Version: ELRS 3.5.3

PACKAGE CONTENTS:

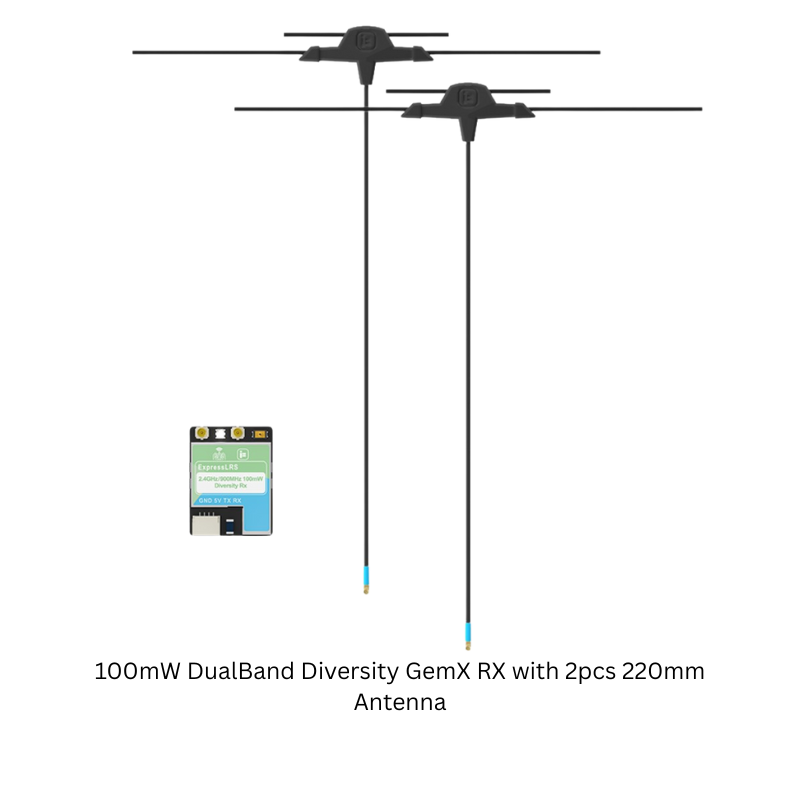

• 1 x ExpressLRS Dualband Diversity GemX ELRS Receiver
• 2 x DualBand Antenna
