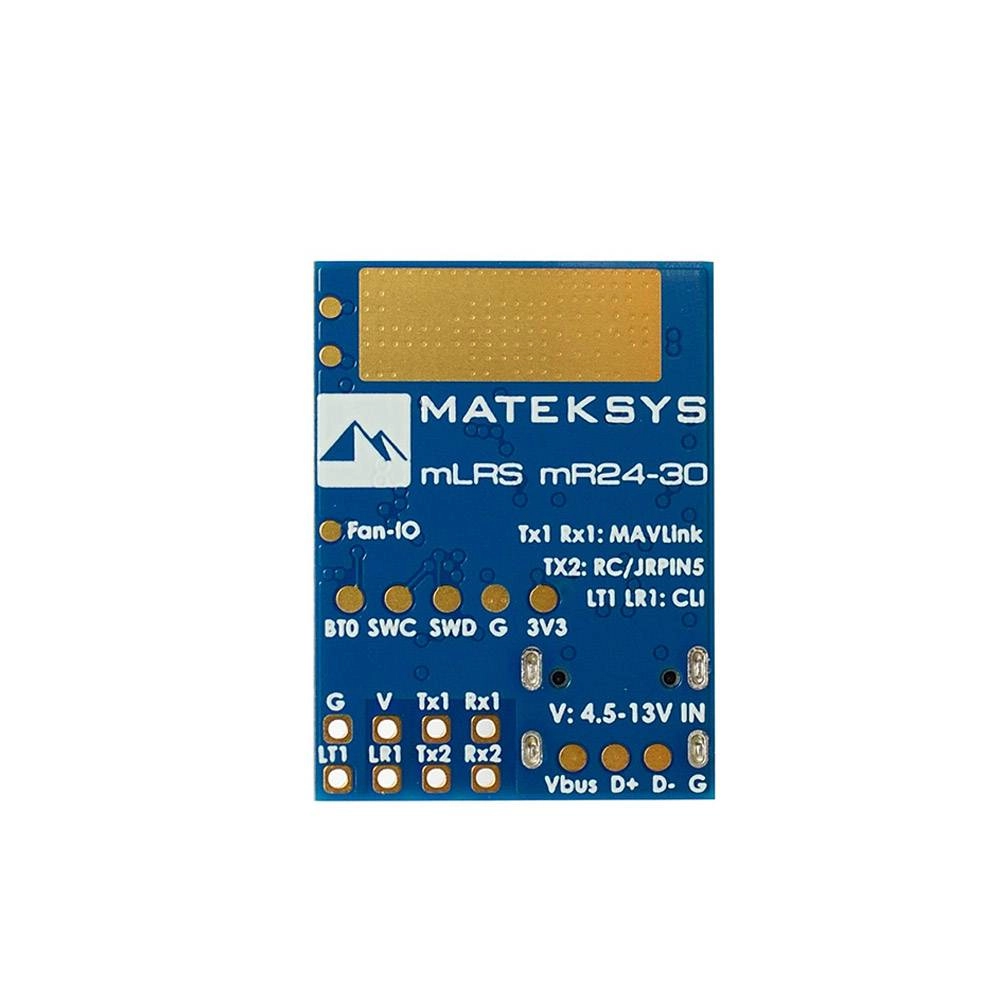

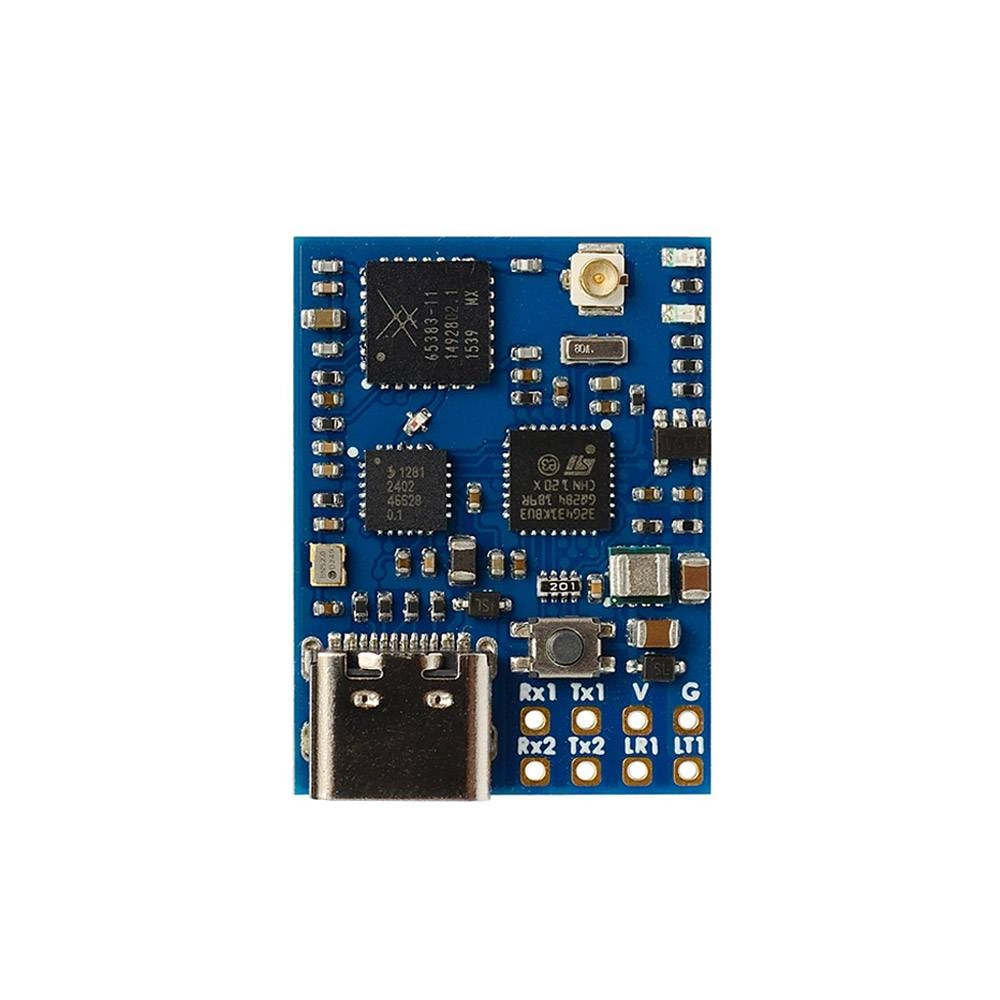

The MATEKSYS mLRS 2.4GHz Receiver – mR24-30 delivers long-range performance in a compact design. Featuring STM32G431KB with mLRS firmware and the LoRa SX1281 chip, it ensures stable communication up to 1000mW across 2.4GHz ISM frequencies. With bi-directional MAVLink, CRSF or SBUS output, and a simple DFU mode, it’s a versatile, reliable receiver with built-in Bluetooth and fan control.

• Reliable Long-Range Communication
• Customizable Setup
• Compatible
• Versatile

• Power Dissipation: Average 360mA / Peak 900mA @ 5V IN (50Hz, 30dBm)
• RF Power: 13dBm (min) / 20dBm / 24dBm / 27dBm / 30dBm (1000mW)
• TX1/RX1: Bi-directional Serial MAVLink
• Power Supply: 4.5-13V DC @ “V” Pad
• One button: DFU mode and Bind
• Antenna Connector: IPEX MHF-1
• STM32G431KB: mLRS firmware
• TX2: RC out (CRSF or SBUS)
• RF Frequency: 2.4GHz ISM
• Weight: 4.5g with antenna
• PA/LNA: SKY68383-11
• LoRa SX1281: TCXO
• PCB Size: 28x21mm

• 1x MATEKSYS mLRS 2.4GHz Receiver – mR24-30
• 1x IPEX MHF1 sleeve dipole antenna 15cm
• 1x Heatsink 20*20*6mm
