Description

PINECIL V2-SMART MINI SOLDERING IRON

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 6 seconds!

• Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack.
• Speedy Rapid Warmup: Reaches operating temperature in 6 seconds. Support for on-demand rapid boost feature.
• Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
• Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
• Auto standby mode engages when it is not in use ensuring the user safety.

SPECIFICATIONS:

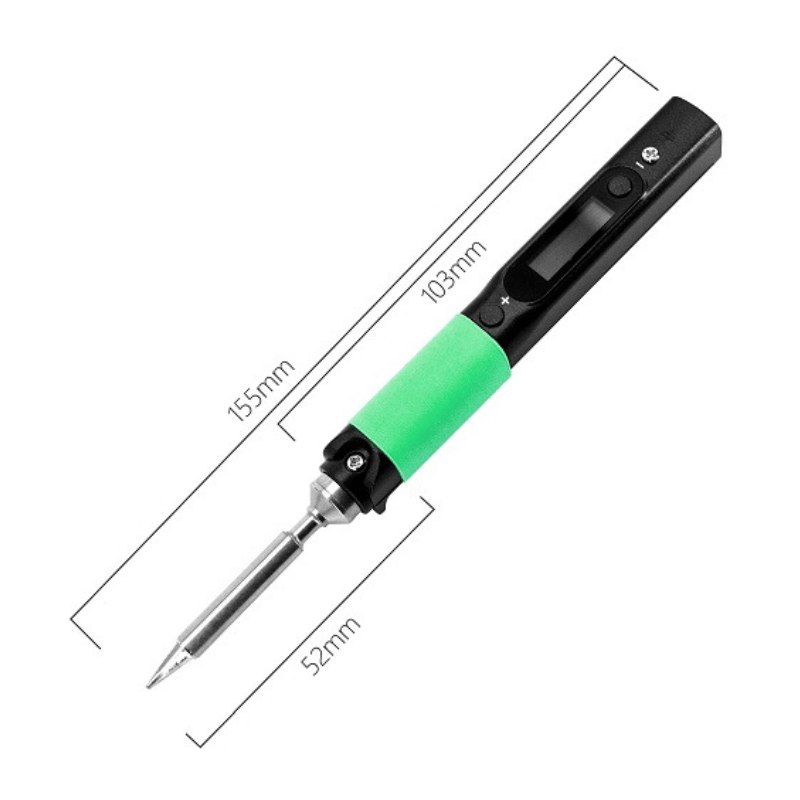

• Body Dimensions:
  •155mm with solder tip / 103mm without solder tip x     12.8mm x 16.2mm
  •Weight: 28g with solder tip / 18g without solder tip
  •Build: Plastic with metal clip (Handle)
  •Color: Black (case)/ Green (Sleeve)
• Platform:
  •OS: Ralim’s IronOS build
  •Chipset: Bouffalo BL-706
  •CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
• Display:
  •Type: OLED White Colour Monochrome Display
  •Size: 069 inches
  •Resolution: 96x16pixels
• Memory:
  •Internal Flash Memory: 192KB
  •System Memory: 132KB SRAM
  •Expansion: NONE
• Power Ports:
  •USB type C: PD and QC 3.0 12V-20V 3A
  •Barrel Jack: DC5525, 12V-24V DC 3A

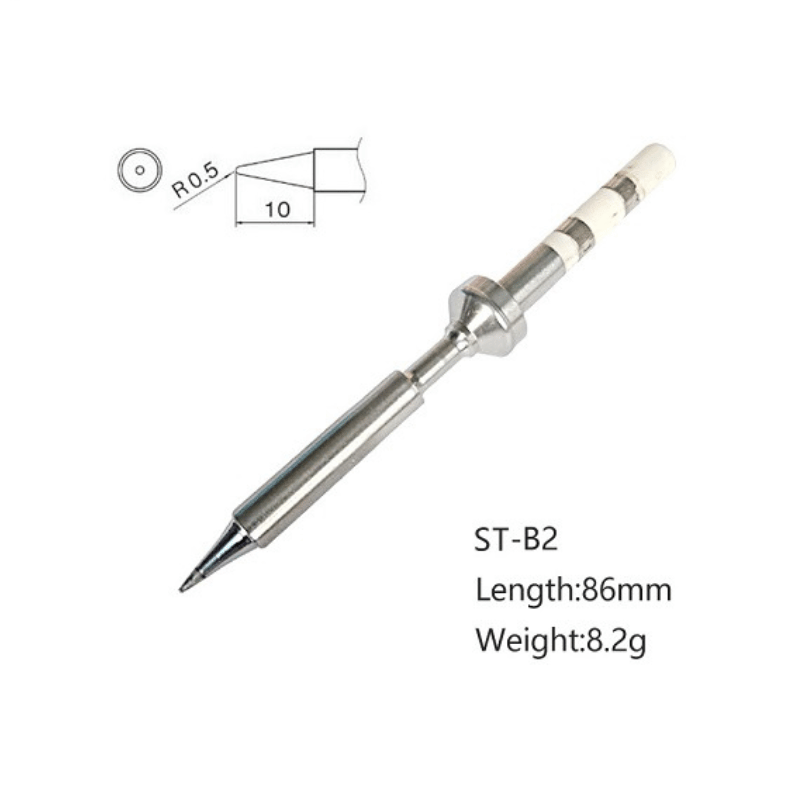

• Tip:
  •Type B2
  •Length: 86mm
  •Weight: 8.2g
• Features:
  •Capable received power from either USB-C port or barrel jack.
  •GPIO break-out thru USB-C port
• CERTIFICATION:
  •FCC
  •CE RED
  •ROHS

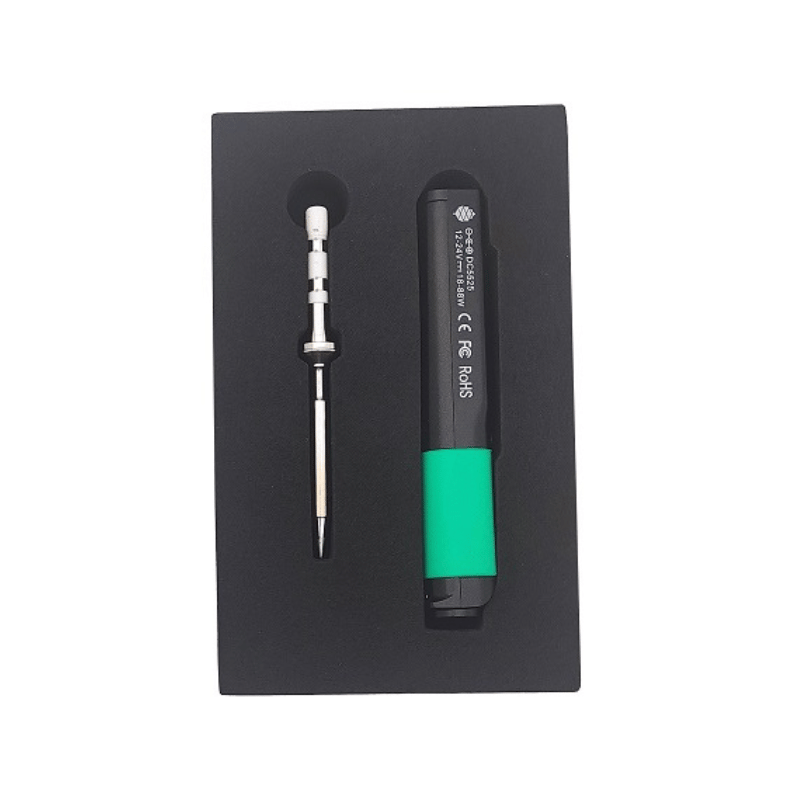

PACKAGE CONTENTS:

• Pinecil Soldering Iron version 2
• ST (Short Tip)-B2 Soldering Tip
