The RadioMaster TX15 Max Radio Transmitter – ELRS 2.4GHz continues to redefine the open-source remote control landscape after years of collaboration with our open-source partners and users. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes. The TX15 MAX is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.

Note: Batteries are not included.

VIDEO: RADIOMASTER TX15 &TX15 MAX | Next-Level Performance!

• Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
• Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
• Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
• Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.
• Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
• Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
• AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
• Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
• Foldable Antenna: Compact and easy to store without compromising signal strength.
• Built-in Microphone: For future feature expansion.
• Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
• Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
• Interchangeable Shoulder Switches: Customize your controls to match your flying style.

• Item: TX15 Max Radio Transmitter
• Size: 178*168*81mm
• Weight: 672g (without battery)
• Color: Red/ Black/ Gold
• Frequency: 2.400GHz OR Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Built-in Flash Size: 4GB
• Built-in Microphone: Yes (Future expansion)
• Built-in Gyro: Yes (ICM-42607-C)
• MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
• Antenna Gain: 2dB (transmit power adjustable)
• Current: 875mA at max power output
• Voltage Range: 6.6 – 8.4V DC
• Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
• Module Firmware: ExpressLRS
• Channels: Max 16 channels (Receiver dependent)
• Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

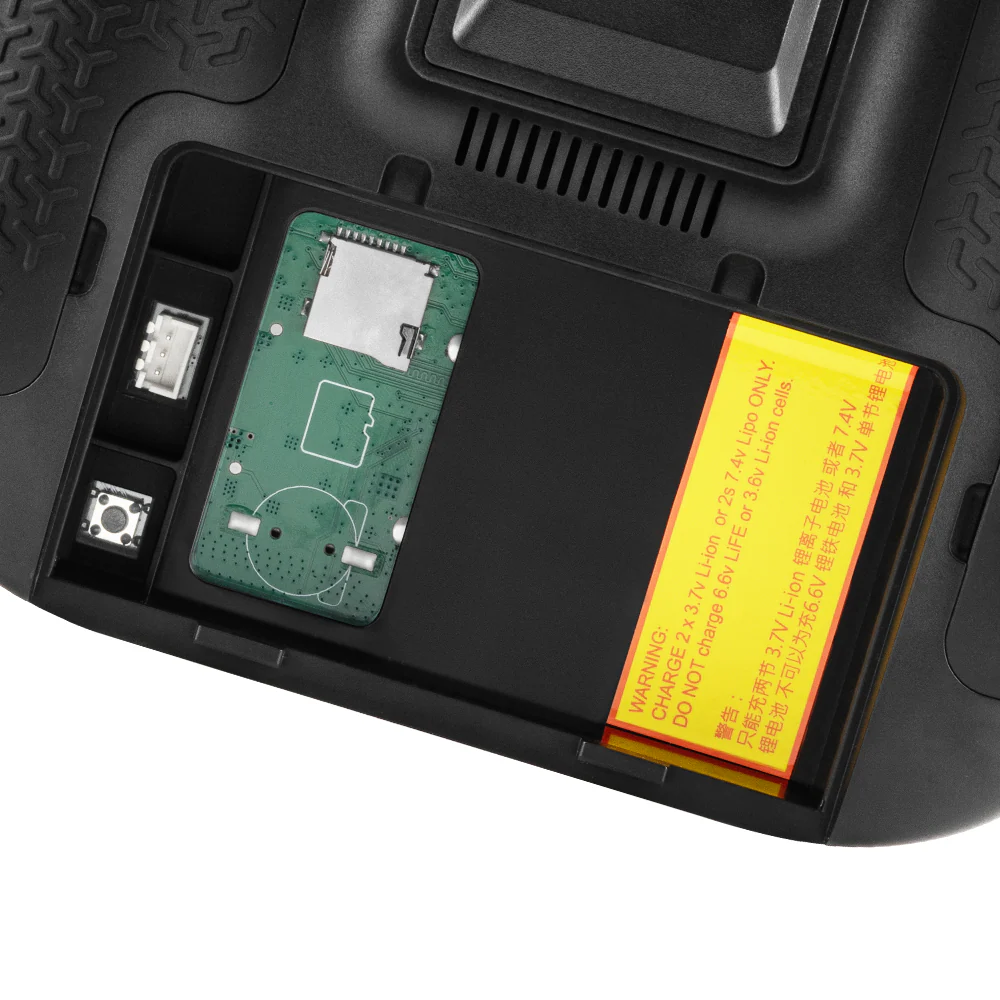

• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall sensor gimbals
• Gimbal Sticks: M4
• Upgrade Method: USB-C (UF2)
• Module Bay: JR-compatible module bay for additional modules

• RadioMaster TX15 MAX Manual

• 1x TX15 Max Radio Controller
• 1x Signature Carry Case
• 1x Short 2-position Latching Shoulder Toggle Switch Assembly
• 1x Short 2-position Momentary Shoulder Toggle  Switch Assembly
• 1x 18650 Battery Tray
• 1x USB-C Cable
• 1x Screen Protector
• 1x 1.5mm Hex Wrench
• 4x High Tension Gimbals Springs
• 2x Gimbal Stick Set Screw
• 1x Stickers Set
• 1x User Manual
• 1x Inventory Card
