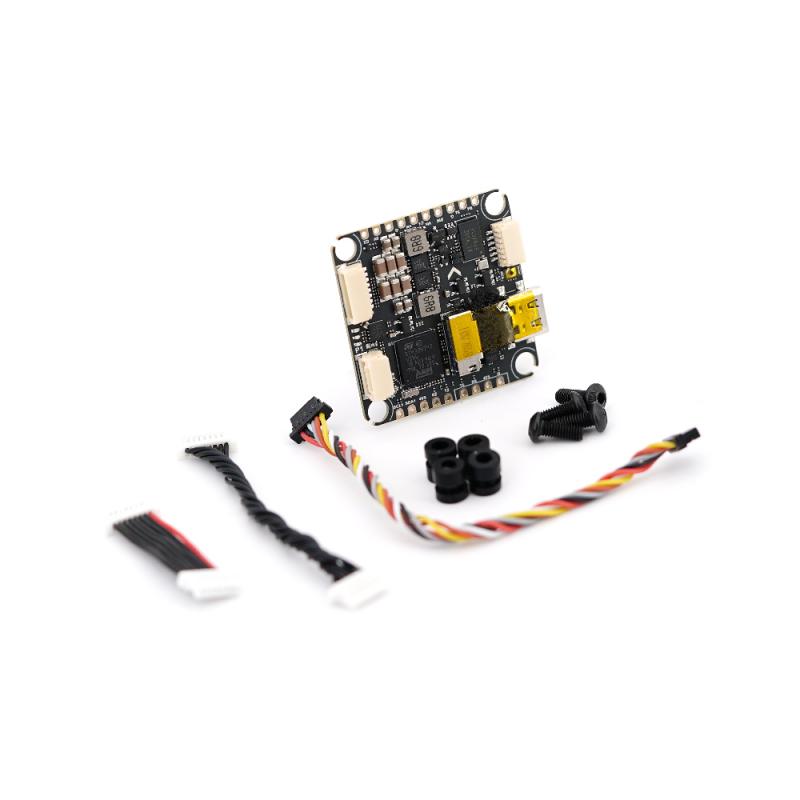

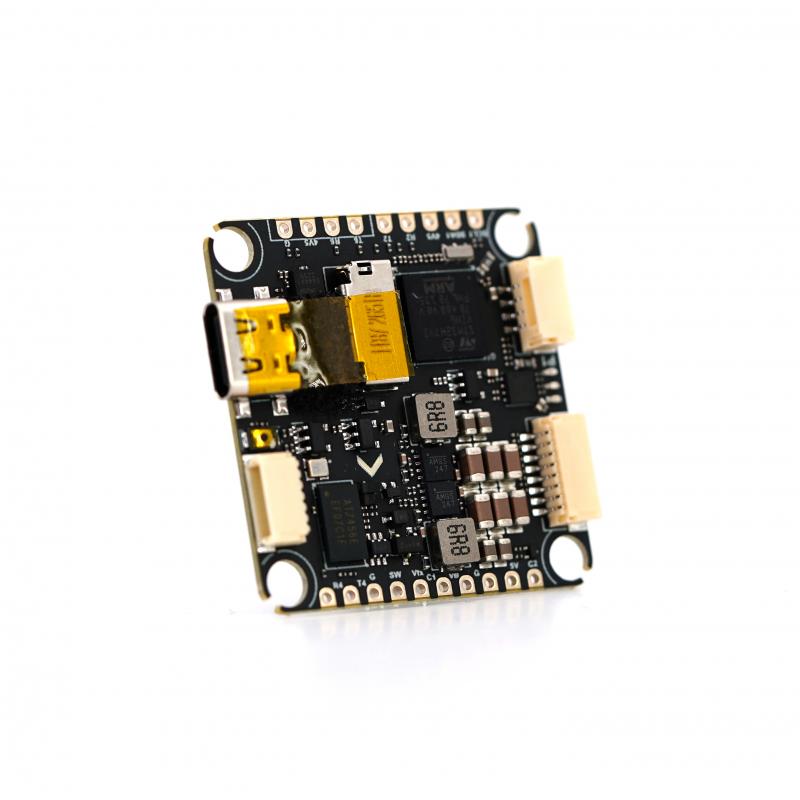

TBS Lucid H7 FC

₹6,999.00

A powerhouse-FC built for the seasoned enthusiast willing to take full advantage of the latest hardware and the most peripherals around.

Manufacturer: Team-Blacksheep(TBS)
CoO: Hong Kong
Shipping Weight: 200gms

In stock

Description

TBS Lucid H7 FC

The TBS Lucid H7 FC is a powerhouse built for those who crave peak performance and adaptability in their drones. Whether you’re ripping through freestyle moves or fine-tuning a racing rig, the TBS Lucid H7 delivers with its robust 480MHz processor and seamless support for Betaflight, ArduPilot, and INAV. Featuring dual camera inputs, DJI FPV OSD compatibility, and a compact design, it fits effortlessly into any setup. Designed for both seasoned pros and enthusiastic newcomers, this flight controller makes pushing the limits of your drone easier than ever.

Specification

MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
Gyro: ICM42688 x 2 (duo gyro)
OSD Chip: AT7456E (SPI2)
Barometer: Infineon DPS310 connected via I2C2.
PWM Outputs: 13 channels, including a dedicated “LED” pad.
Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) signal inversion ready
I2C Buses: 2 available.
CAN Bus: 1 available.
Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2).
LED Indicators: 3 LEDs (Blue, Green for FC Status, Red for 3.3V Power).
Breakout: SPI3 breakout available.
USB Interface: Type-C connector (USB 2.0 standard).
JST Connectors:
- 1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- 1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground).
Dual Camera Input: Switchable inputs for two cameras.
Power Control: Switch for filtered 5V/Vbat output power.
DJI FPV OSD: Compatible via any spare UART port.
