Description
TBS UNIFY PRO32 UP (MMCX)-SE

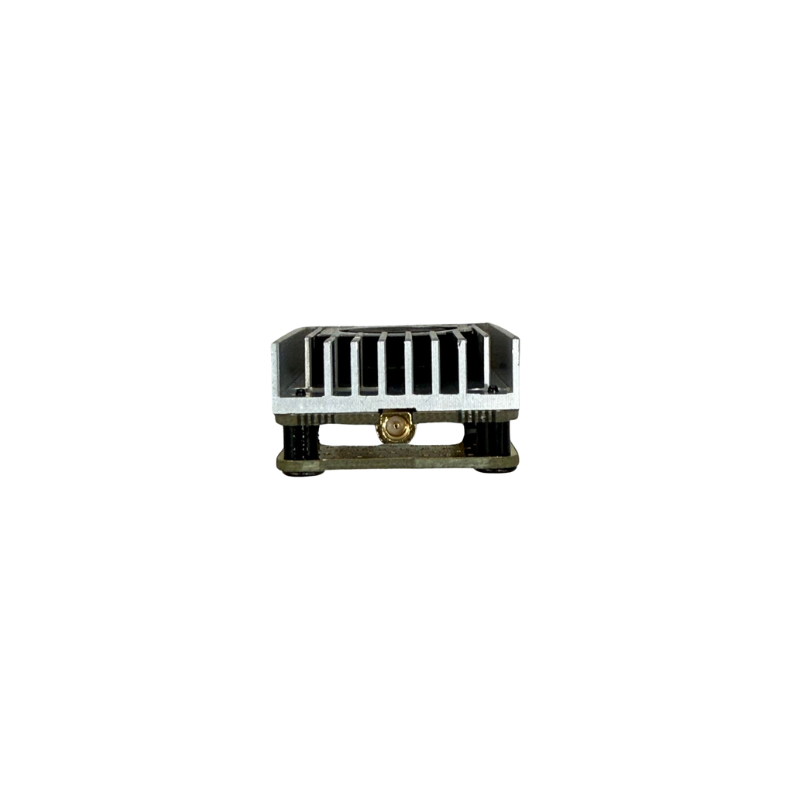

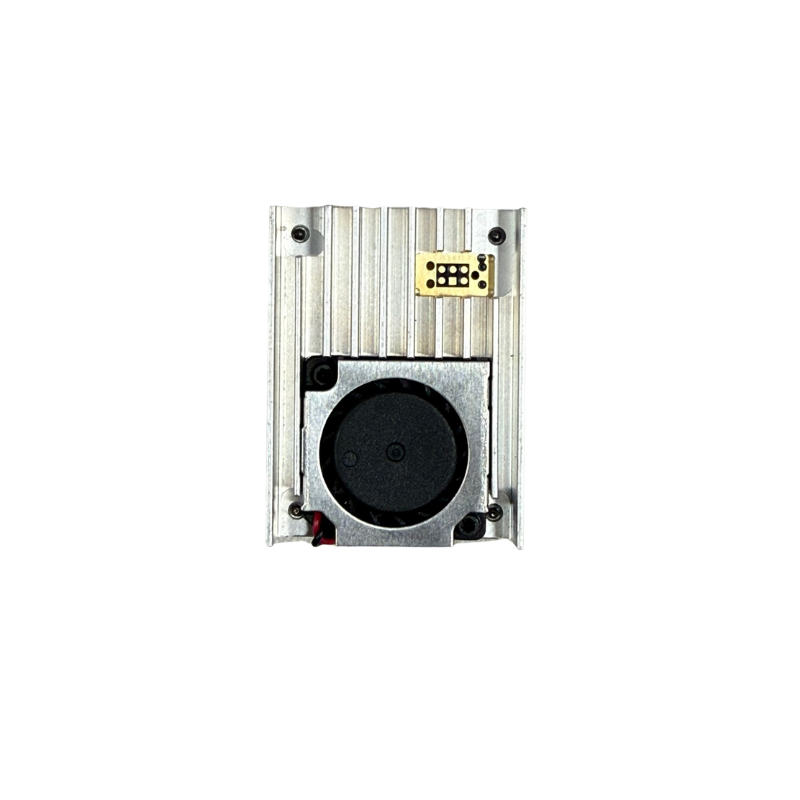

The TBS UNIFY PRO32 DP (MMCX)-SE, is a high-quality video transmitter (VTx) designed for use in fpv drones. It comes with several features like improved robustness, decreased size and power consumption.SE-special edition,we here at Anubis in collab with TBS had requested for a special version with added CNC hetasink and fan which further Enhances the performance and durability of UNIFY PRO32 UP (MMCX).
Difference between Normal & SE verison is only hardware changes are made rest assured features like betaflight vtx table,dip switch operation etc all remians the same.
Highlights
- World’s lightest 3 Watt video transmitter
- Frequency range: 4990 MHz – 6030 MHz
- OSD configuration using TBS Smart Audio 2.1
(via Betaflight, TBS Crossfire / Tracer or Ardupilot) - One button frequency and power setup
- LUA support for CRSF users
- MMCX connector
- 2-6S input
- Double noise filtering (>63dB SNR)
- Optimized heat dissipation, no heatsink required
- Optional matching circular polarized antenna available
Specifications
| Operating Voltage | 6V – 25V (2 – 6S) |
| Video Input Impedance | 75 Ohm |
| SNR | >63dBm |
| Weight | 8.7g |
| Dimensions | 37 x 28 x10mm |
| Antenna Connector | MMCX |
| Video Format | NTSC/PAL |
| Output Power | 10dBm (10mW), 14dBm (25mW), 20dBm (100mW), 23dBm (200mW), 26dBm (400mW), 27dBm (500mW), 30dBm (999mW), Max |
User Manual

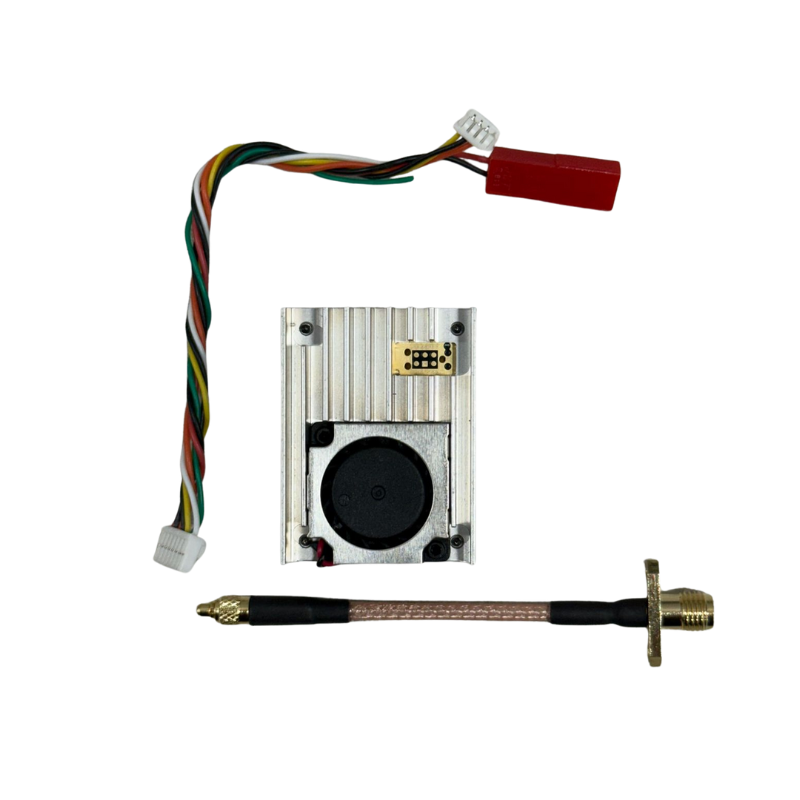

Included
- 1x TBS UNIFY PRO32 DP 5G8 HV Video transmitter
- 1x Silicone cable (ends pre-tinned)
- 1x MMCX to SMA pigtail
- 1x Heat transfer tape for easy FPV drone mounting
Important!
The Unify Pro32 DP is a high power video transmitter. Operating it with bad quality antennas, or without antennas on higher power levels will inevitably brick the unit – faster than you would expect. It is therefore important to use the wideband function only with wideband antennas on the highest power settings!
