Description

AOS 7 V5 FRAME KIT

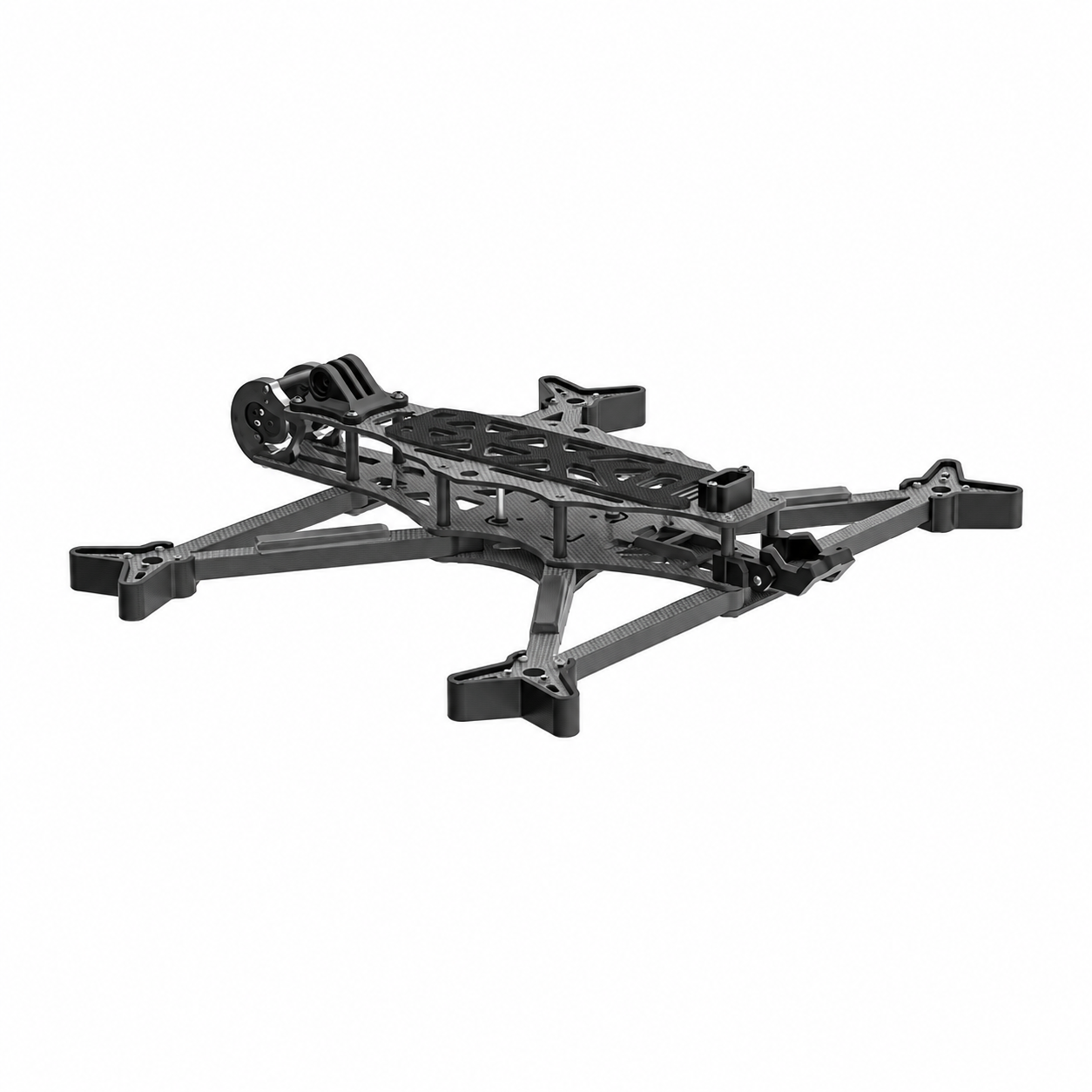

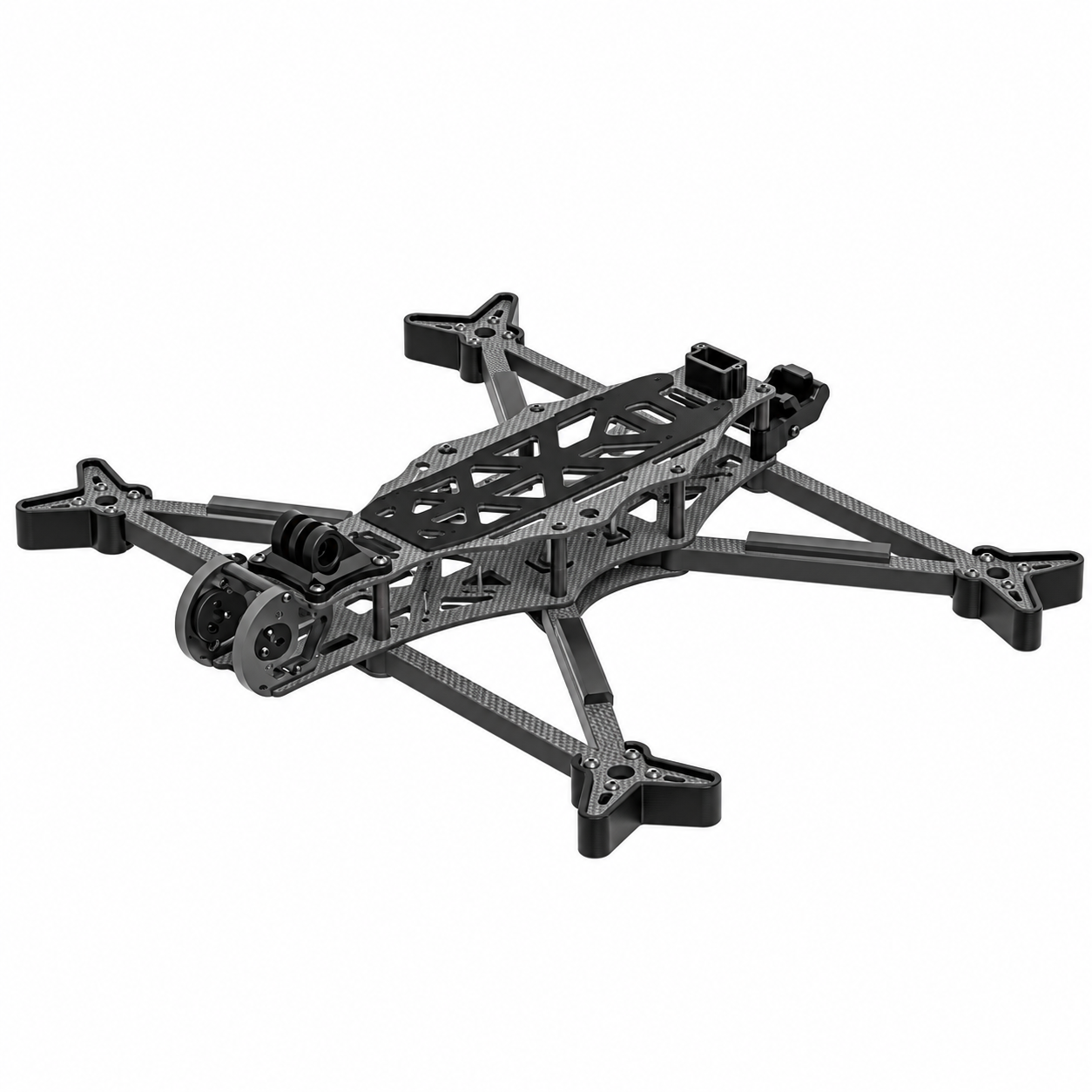

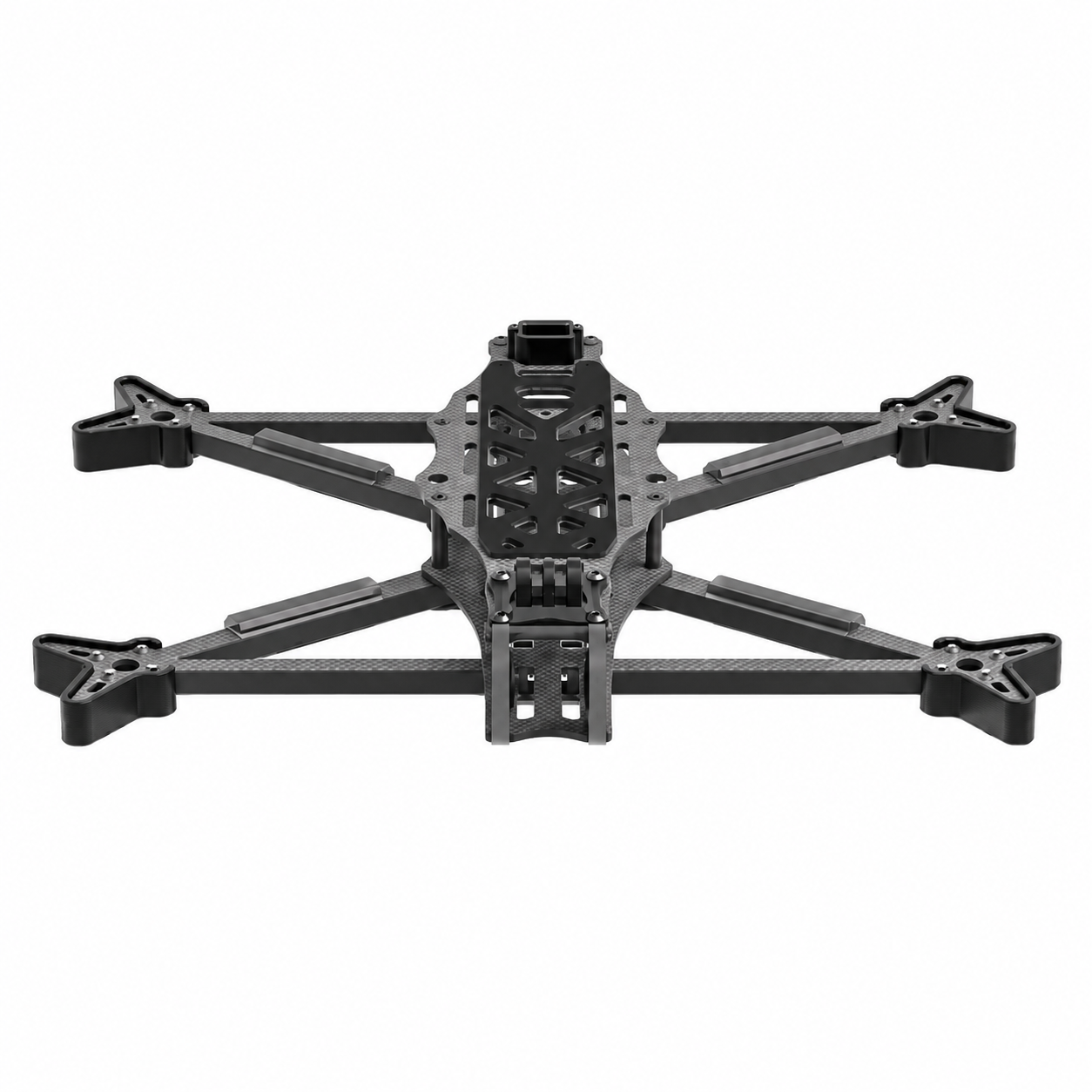

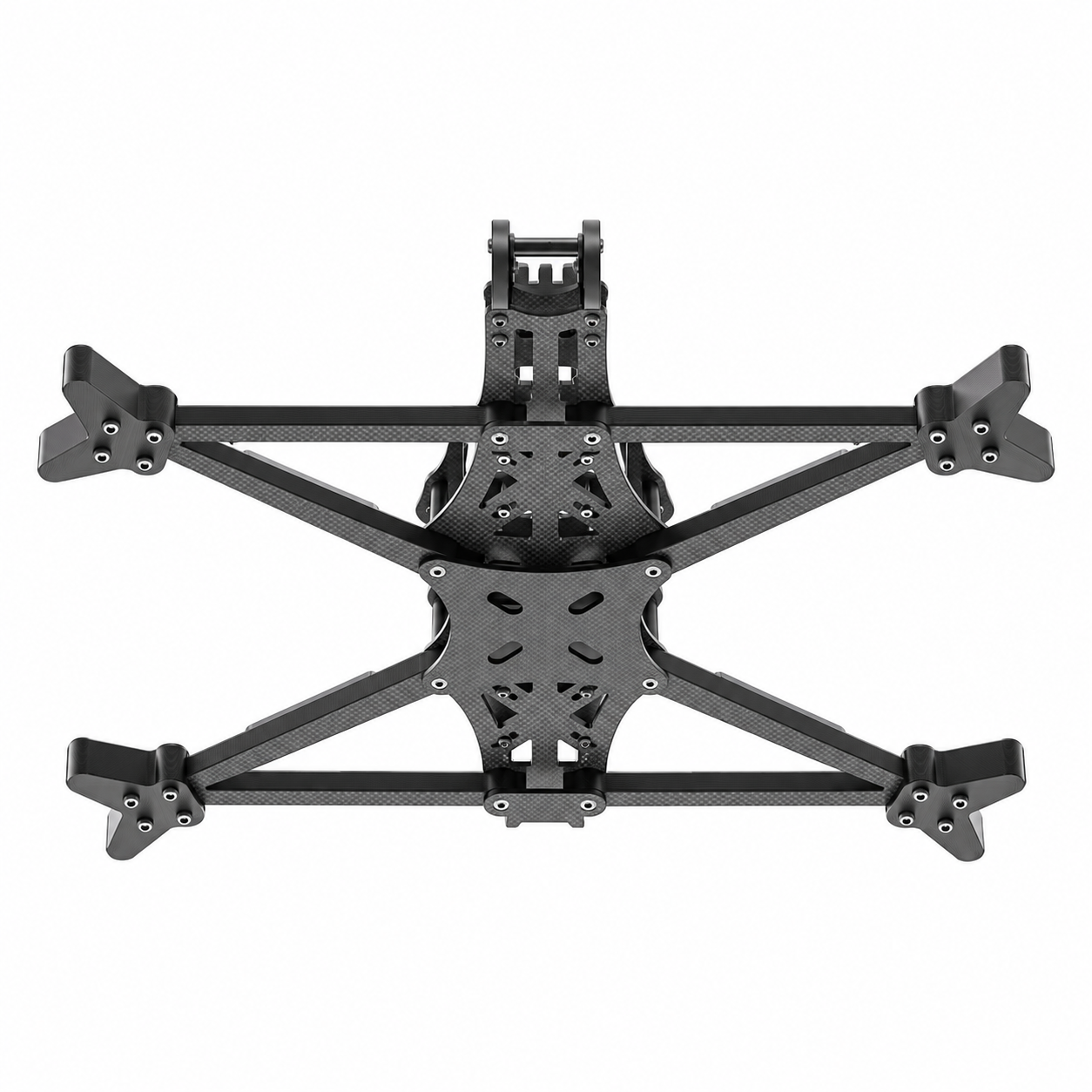

Build your next 7-inch freestyle or long-range FPV drone around the AOS 7 V5 Frame Kit. Its carbon fibre structure combines 8 mm arms with a 7075 aluminium camera cage for a durable build platform. The AOS X-Cell flight controller mount helps isolate vibrations, while three electronics mounting positions give you flexibility when arranging your components.

The camera cage accommodates 19–20 mm cameras and includes soft mounting for DJI O3 and O4 cameras. Supplied TPU parts, motor wire shield tubes and battery straps help complete your frame build.

FEATURES:

• Designed for 7-inch freestyle and long-range FPV builds.
• Carbon fibre frame with 8 mm arms.
• 7075 aluminium camera cage for 19–20 mm cameras.
• Integrated DJI O3/O4 camera soft mounting with support for ND filters.
• AOS X-Cell anti-vibration flight controller mount.
• Three electronics mounting positions for flexible component placement.
• Supports 20 × 20, 25.5 × 25.5 and 30.5 × 30.5 mm electronics mounting patterns.
• Compatible camera options for DJI, Walksnail, HDZero and analogue systems.
• Spacious layout with accessible assembly screws.

SPECIFICATIONS:

• Product: AOS 7 V5 Frame Kit
• Product code: L016784
• Propeller class: 7 inch

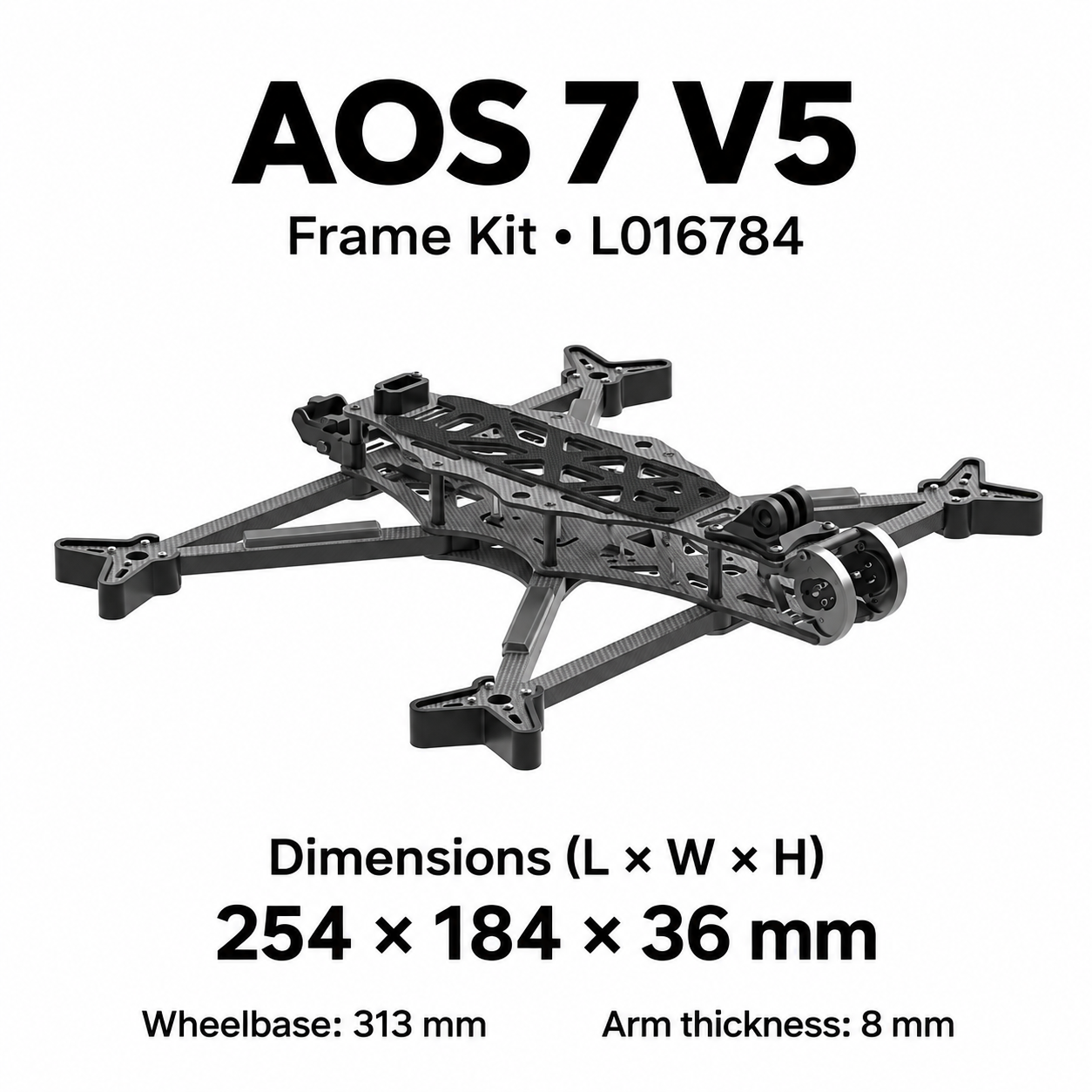

• Wheelbase: 313 mm
• Dimensions: 254 × 184 × 36 mm (L × W × H)
• Frame material: Carbon fibre
• Camera cage: 7075 aluminium
• Arm thickness: 8 mm
• Top plate thickness: 2 mm
• Bottom plate thickness: 2.5 mm
• Upper plate thickness: 2 mm
• Motor mounting: 19 × 19 mm, Ø3 mm holes
• Camera width: 19–20 mm; 14 mm cameras require a suitable adapter
• Supported video system options: DJI O4 Air Unit Pro, DJI O3 Air Unit, HD Vista and BLITZ Whoop 1.6W VTX
• Published kit weight: 325 g (iFlight)

PACKAGE CONTENTS:

• 1 × AOS 7 V5 Frame Kit
• 1 × TPU parts set
• 4 × Motor wire shield tubes
• 1 × Screw bag
• 2 × Battery straps

Frame kit only. Motors, propellers, flight controller, ESC, camera, video transmitter and battery are not included.
