IFLIGHT BLITZ BEC MODULE – 5V/12V OUTPUT

399.00

The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 35V to a low output stable voltage, which makes it ideal for step-down voltage applications.

  • Manufacturer: IFLIGHT
  • CoO: CHINA
  • Shipping Weight: 100gms



In stock

Description

Description

IFLIGHT BLITZ BEC MODULE – 5V/12V OUTPUT

The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 35V to a low output stable voltage, which makes it ideal for step-down voltage applications.

It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (6 to 35V).

* Short connect ON-12V, the output voltage is 12V. When disconnected, the output voltage is 5V.

* If there is sparking phenomenon when the power is turned on, it is recommended that the input voltage should not exceed 26V.

FEATURES:

  • Step-down switch mode
  • High-efficiency synchronous
  • Wide 5V to 36V Input voltage range
  • The voltage output can be 5V or 12V adjustable. (default 5V)

SPECS:

  • Input voltage: 2-8S(5-35V)
  • BEC Output: 5V/3A, 12V/2A (default 5V/3A)
  • Conversion efficiency: the average efficiency of output 12V is above 92%, and the average efficiency of output 5V is above 88%.
  • Size: 12*14*4.5mm
  • Pins distance: 2.55mm

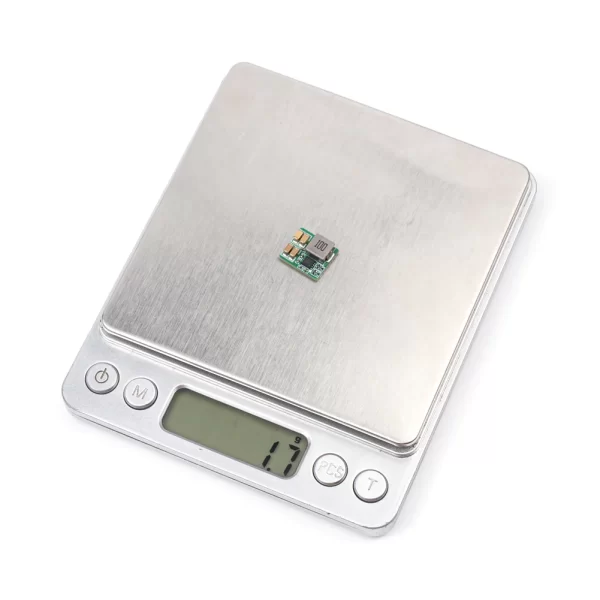

  • Weight: 1.8g

PACKAGE INCLUDES:

  • 1 x iFlight Blitz BEC Module – 5V/12V Output
  • 1 x Cable Set
