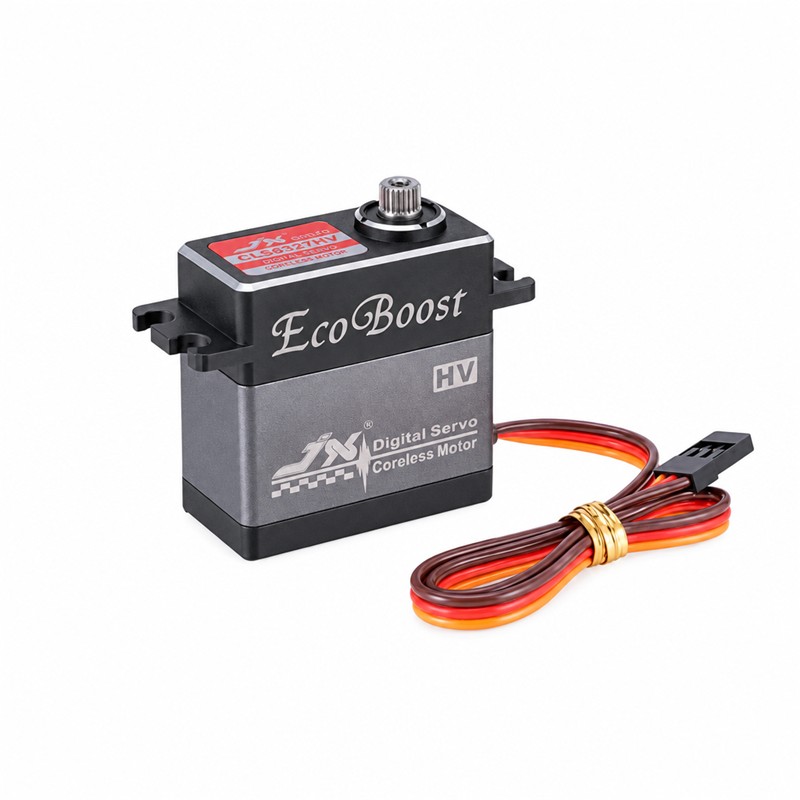

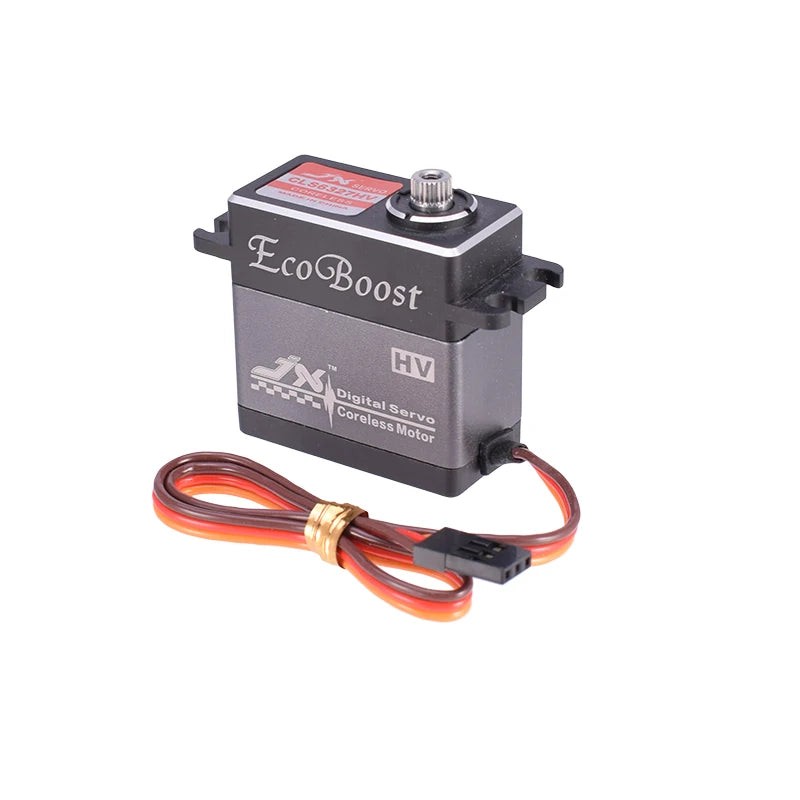

JX SERVO CLS6327HV – 27KG LARGE TORQUE HIGH VOLTAGE CNC ALUMINIUM SHELL METAL GEAR CORELESS DIGITAL SERVO

The JX CLS6327HV is a high-voltage digital servo with a coreless motor, metal gears and a CNC aluminium housing. It provides up to 27.45 kg·cm stall torque at 7.4 V, with a rated speed of 0.09 seconds per 60° at the same voltage.

FEATURES:

• Coreless motor with digital control.
• CNC aluminium shell and metal gear train.
• Dual ball bearings.
• High-torque performance for compatible RC control installations.

SPECIFICATIONS:

• Brand / model: JX CLS6327HV
• Operating voltage: DC 6.0–7.4 V
• Stall torque: 22.61 kg·cm at 6.0 V; 27.45 kg·cm at 7.4 V
• Operating speed: 0.11 sec/60° at 6.0 V; 0.09 sec/60° at 7.4 V
• Control signal: 1520 µs / 330 Hz
• Dead band: 1 µs
• Connector: JR type

PACKAGE CONTENTS:

• 1 × JX CLS6327HV digital metal gear servo
• 1 × Set of servo fittings
