MAYATECH DROP RELEASE MECHANISM (WITHOUT SERVO)

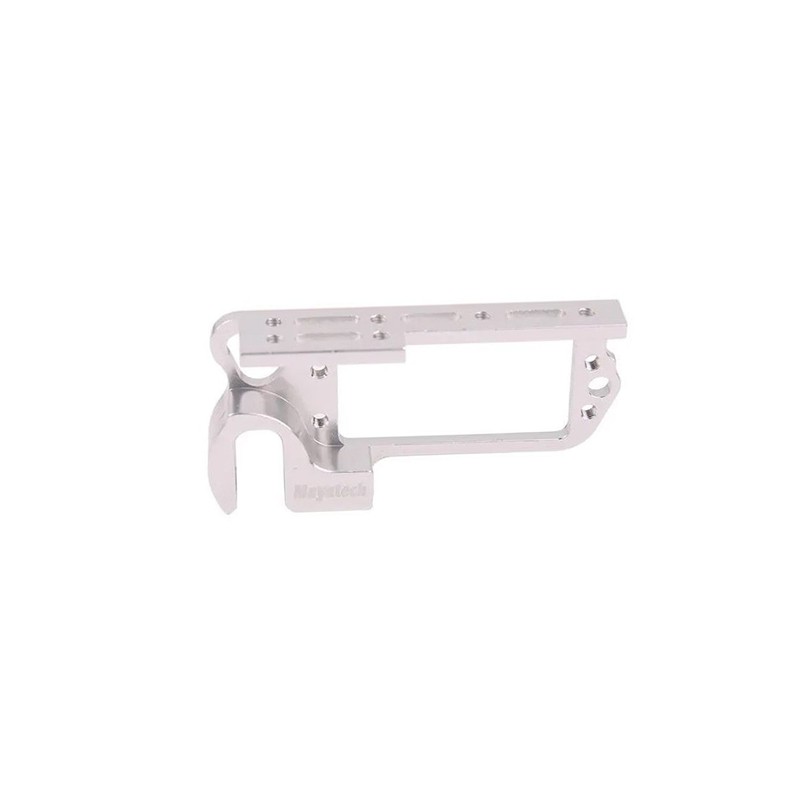

The Mayatech drop release mechanism provides a servo-operated sliding-pin release for RC installations. It fits standard-size servos, with the EMAX ES3005 listed as a compatible example. The open frame provides mounting holes for installation.

This package contains the mechanical release assembly and fittings only. A suitable servo and control channel are required separately. Set the servo travel to operate the pin freely without binding.

FEATURES:

• Sliding-pin release mechanism.
• Frame designed for standard-size servos.
• Multiple mounting holes and strap mounting option.
• Supplied without a servo.

SPECIFICATIONS:

• Brand: Mayatech
• Type: mechanical drop release assembly
• Listed size: 78 × 35 × 45 mm
• Mechanism weight: approximately 25 g
• Sliding pin diameter: 4 mm
• Release opening: 8 × 10 mm
• Servo fit: standard size, such as EMAX ES3005 / JX SERVO CLS6327HV

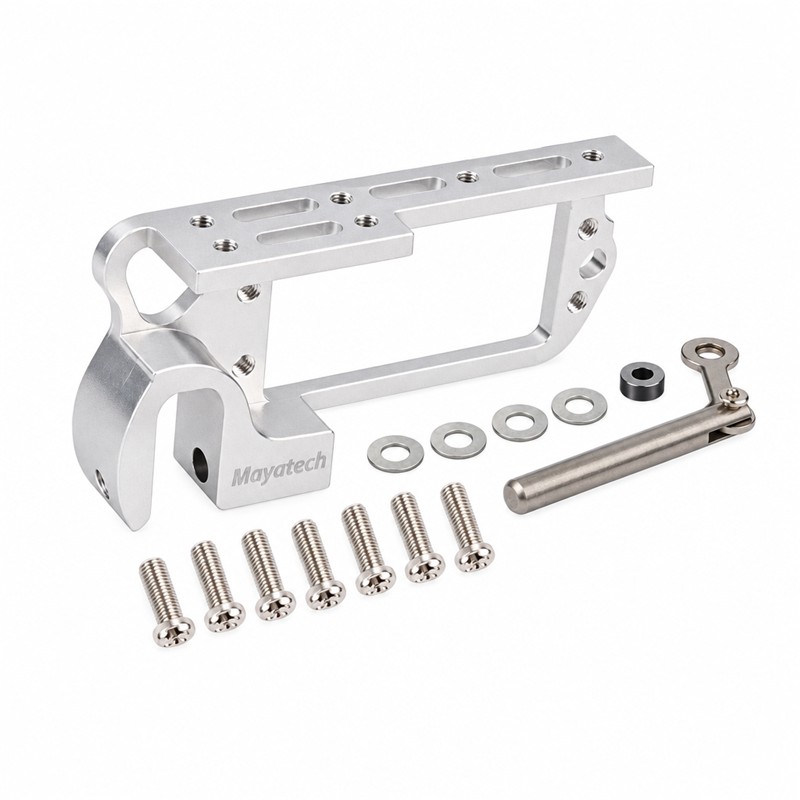

PACKAGE CONTENTS:

• 1 × Mayatech release frame
• 1 × Sliding release pin and linkage assembly
• 1 × Set of mounting fittings

Servo not included.
