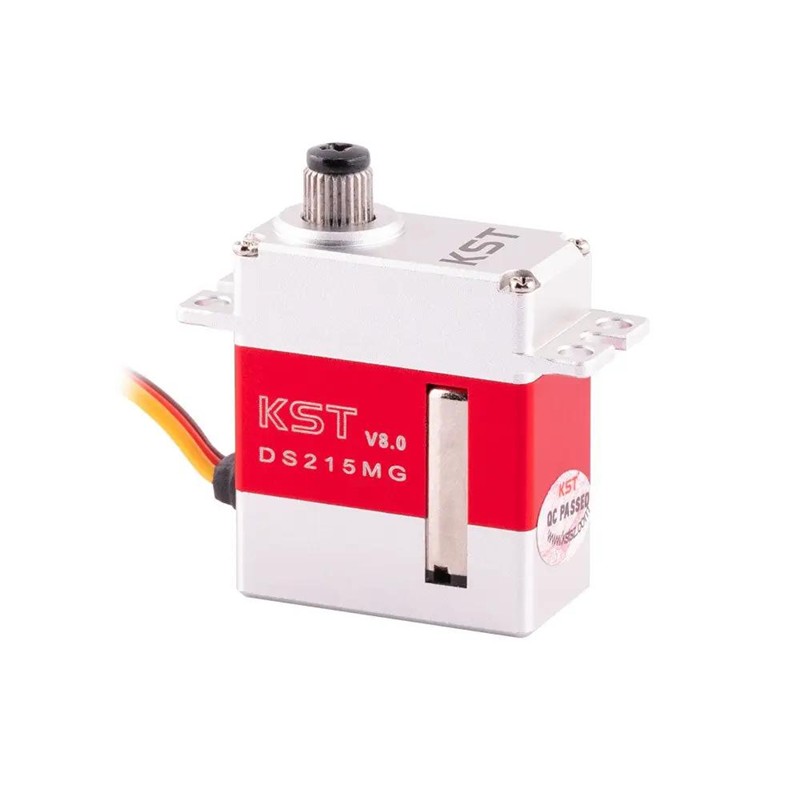

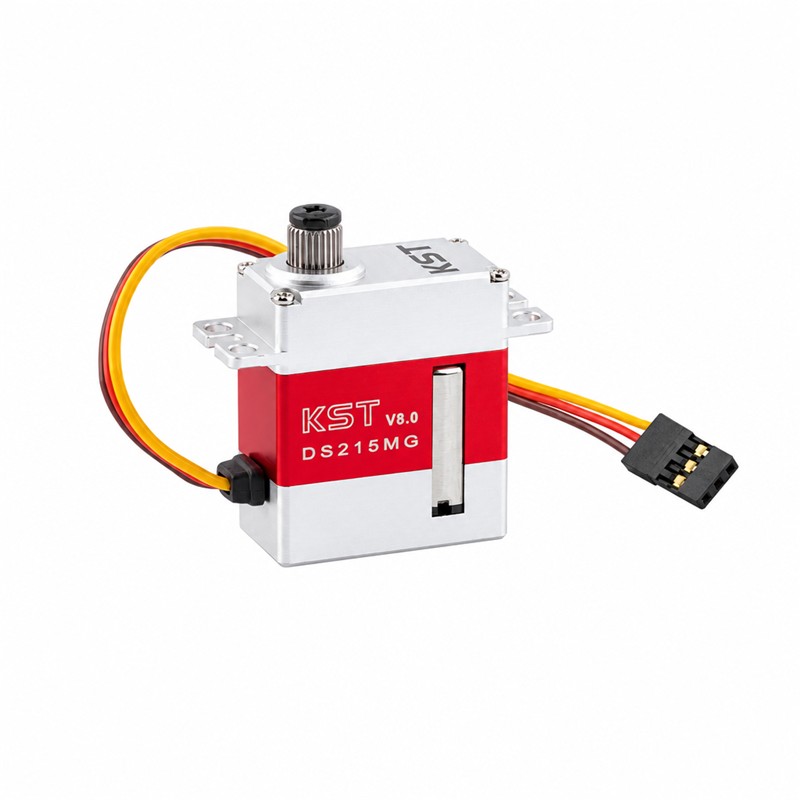

KST DS215MG V8.0 DIGITAL METAL GEAR MICRO SERVO

The KST DS215MG V8.0 is a high voltage digital micro servo for RC gliders and helicopters. A coreless DC motor, hardened steel gears and an aluminium alloy case combine in a compact 23 × 12 × 27.5mm housing.

It operates from 6.0–8.4V and delivers up to 4.0kgf.cm torque with a speed of 0.050sec/60° at 8.4V. Use a suitable high voltage power supply; this model is not intended for a 5V supply.

FEATURES:

• Digital control with a coreless DC motor.
• Hardened steel gear train and two ball bearings.
• Aluminium alloy case.
• Programmable operation and soft start.
• Supplied with plastic servo horns and mounting screws.

SPECIFICATIONS:

• Manufacturer: KST
• Model: DS215MG V8.0
• Voltage range: 6.0–8.4V DC; rated voltage: 7.4V
• Torque: 3.1kgf.cm at 6.0V; 3.7kgf.cm at 7.4V; 4.0kgf.cm at 8.4V
• Speed: 0.060sec/60° at 6.0V; 0.055sec/60° at 7.4V; 0.050sec/60° at 8.4V
• Control signal: 1520µs / 333Hz
• Default travel: ±70° (140° total)
• Case dimensions: 23 × 12 × 27.5mm (±0.2mm)
• Servo weight: 20g (±10%)
• Shipping weight: 100g

PACKAGE CONTENTS:

• 1 × KST DS215MG V8.0 servo
• 1 × Servo horn screw
• 4 × Mounting screws
• 5 × Plastic servo horns
