Description

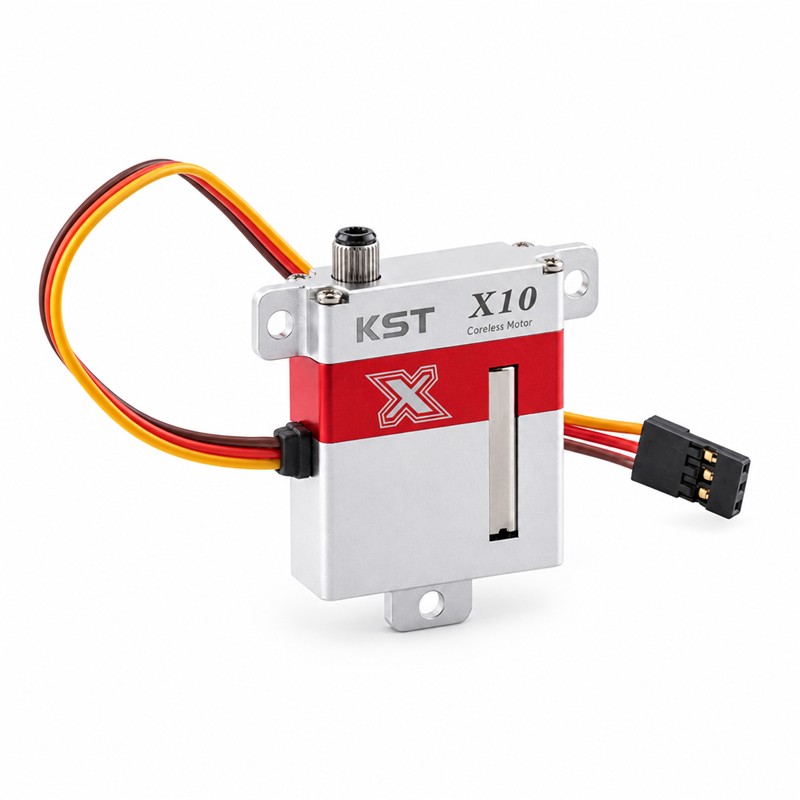

KST X10 V8.0 DIGITAL METAL GEAR MICRO SERVO

The KST X10 V8.0 is a slim digital wing servo for RC gliders. Its 10 mm aluminium case houses hardened steel gears and a coreless motor. It delivers up to 10.8 kgf·cm torque at 8.4 V for demanding wing and flap installations.

FEATURES:

• Digital control with programmable settings and soft start.

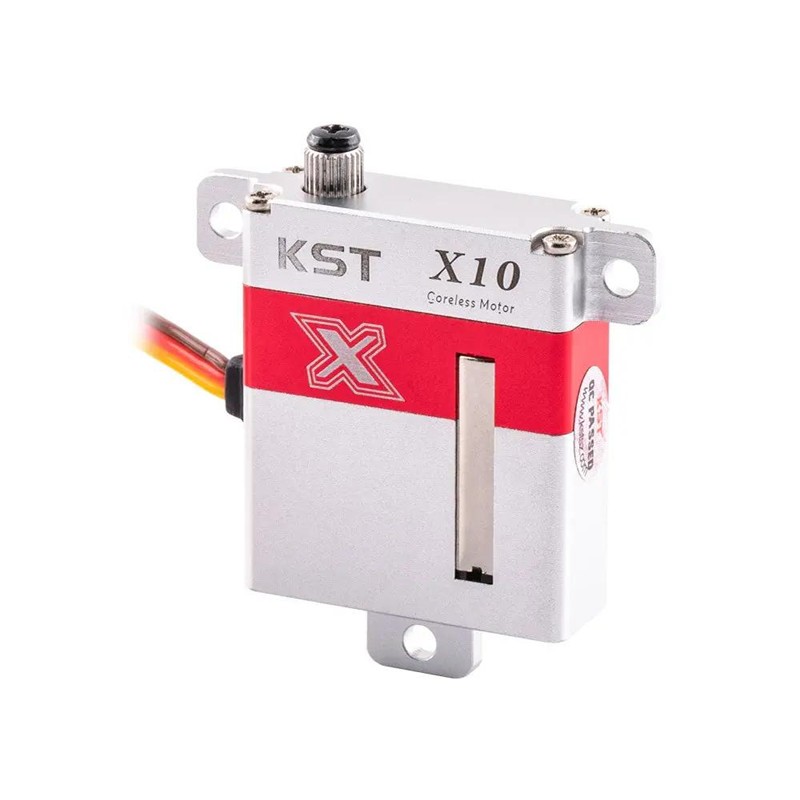

• CNC-machined aluminium alloy case.
• Hardened steel gears and two ball bearings.
• Suitable for F3J, F3B and F3F glider applications.

SPECIFICATIONS:

• Model: X10 V8.0
• Operating voltage: 4.8–8.4 V; rated voltage: 7.4 V
• Torque at 4.8 / 6.0 / 7.4 / 8.4 V: 6.2 / 7.5 / 9.5 / 10.8 kgf·cm
• Speed at 4.8 / 6.0 / 7.4 / 8.4 V: 0.16 / 0.14 / 0.12 / 0.10 sec/60°
• Control signal: 1520 µs / 333 Hz
• Travel: ±50° (100° total)
• Motor: coreless DC; position sensor: potentiometer
• Dimensions: 30 × 10 × 35.5 mm (±0.2 mm)
• Lead length: 15 cm
• Net weight: 28 g (±10%)
• Operating temperature: −10°C to +65°C

PACKAGE CONTENTS:

• 1 × KST X10 V8.0 servo

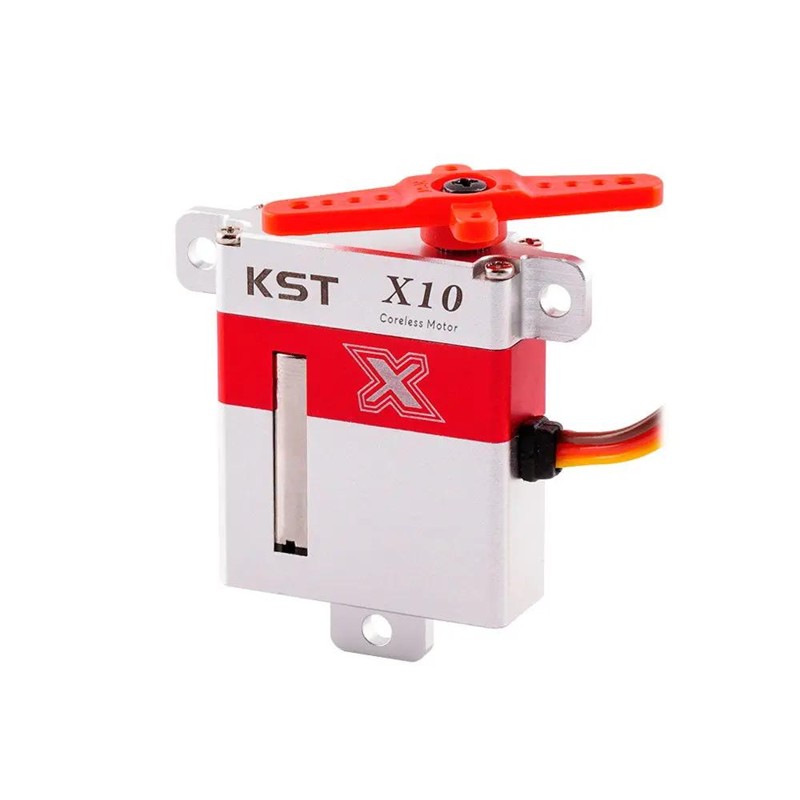

• 5 × Plastic servo horns
• 1 × Horn screw
• 3 × Mounting screws
