Description

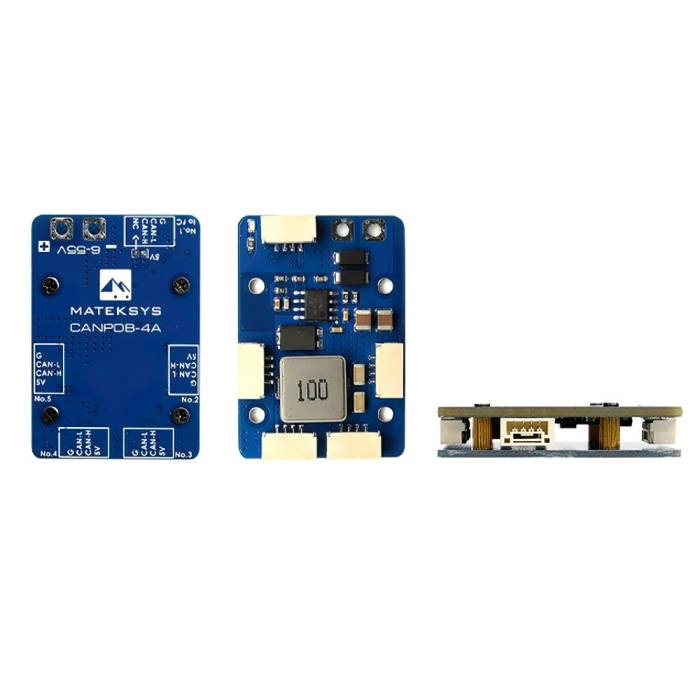

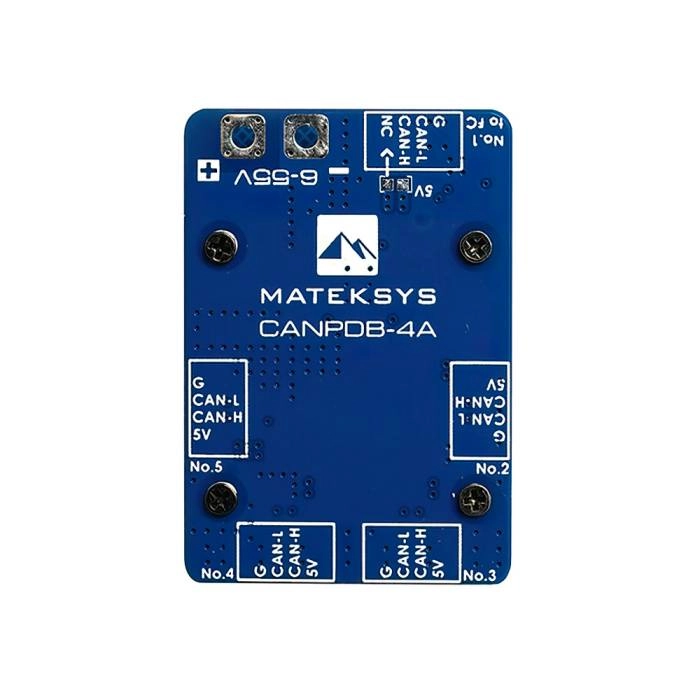

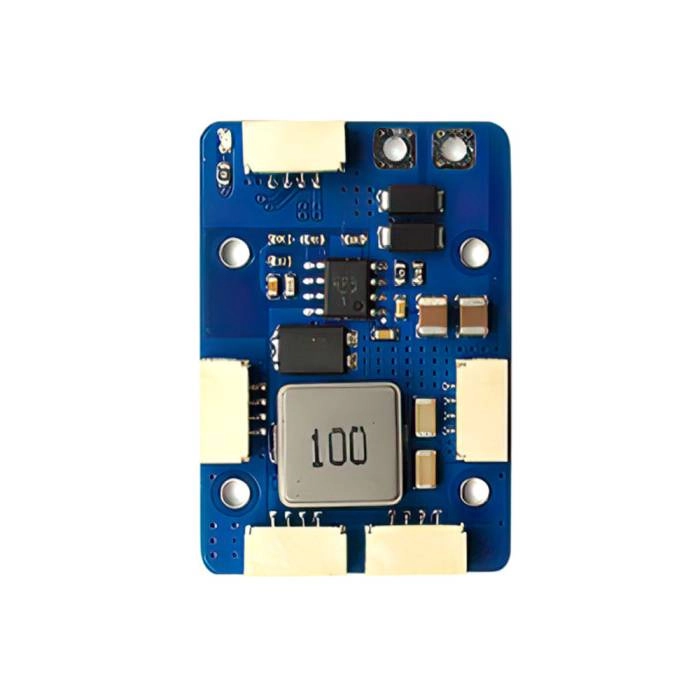

MATEKSYS CANPDB w/ 4A BEC & JST-GH SPLITTER

Introducing the MATEKSYS CANPDB with 4A BEC & JST-GH Splitter, your solution for efficient power distribution and signal management in your RC system. Featuring a robust 4A BEC, it ensures stable power delivery to your devices. The integrated JST-GH splitter enables convenient connectivity for multiple peripherals. Say goodbye to power woes and streamline your setup with the MATEKSYS CANPDB.

FEATURES:

• Enhanced Signal Management
• Efficient Power Distribution
• Integrated JST-GH Splitter
• Plug-and-Play Installation
• Reliable Construction
• Streamlined Setup
• Compact Design
• Safety Features
• Robust 4A BEC
• Compatibility

SPECIFICATIONS:

• Maximum Duty Cycle: 100% – when the input voltage is less than the setting value
• Load Current: 4A continuous, 1A for each JST-GH port
• CAN port connector: JST-GH 4-pin (SM04B-GHS-TB)
• Operating Input Range (2S-12S Li-xx): 6V to 55V
• Output short-circuit tolerant: 3 seconds
• Size & Weight: 38 x 26 x 7.8mm, 12g
• Output: 5.2V on “5V” pin/pads
• CAN-H/CAN-L in parallel: 5

PACKAGE CONTENTS:

• 1x MATEKSYS CANPDB w/ 4A BEC & JST-GH Splitter
• 1x JST-GH-4P to JST-GH-4P 20cm silicone cable
