Description

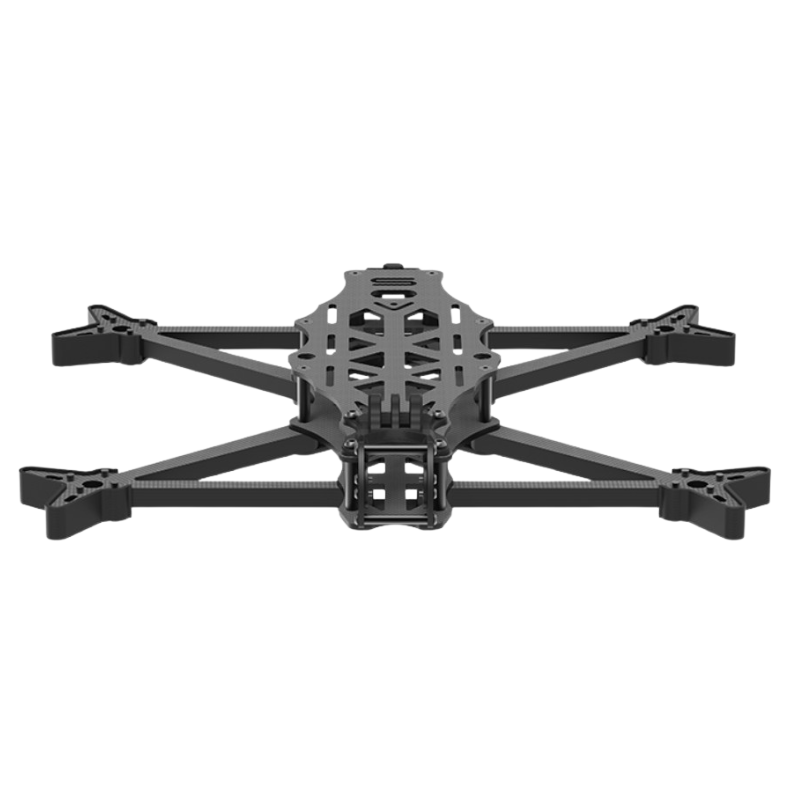

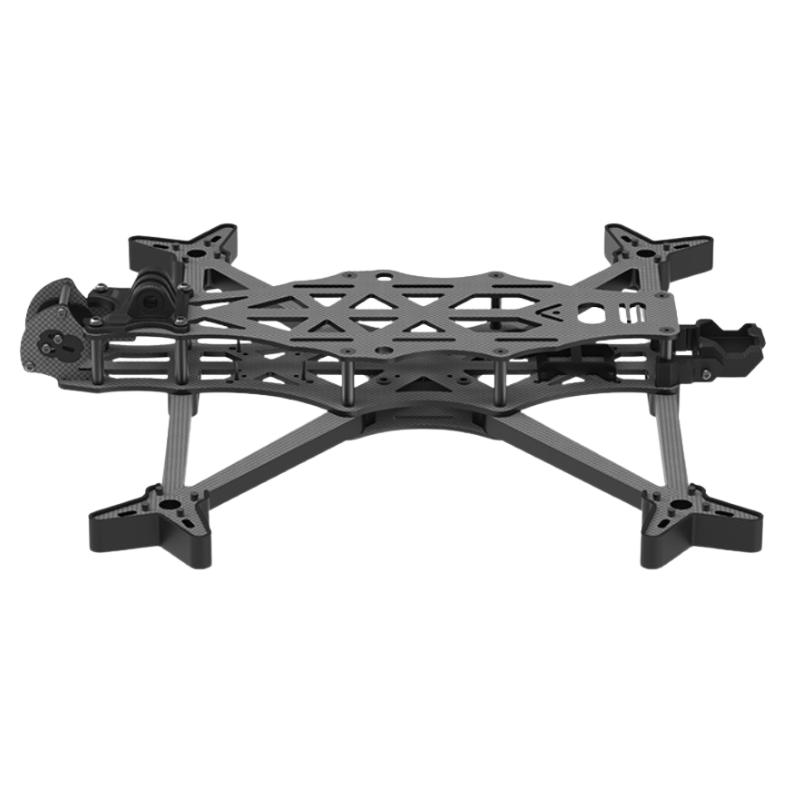

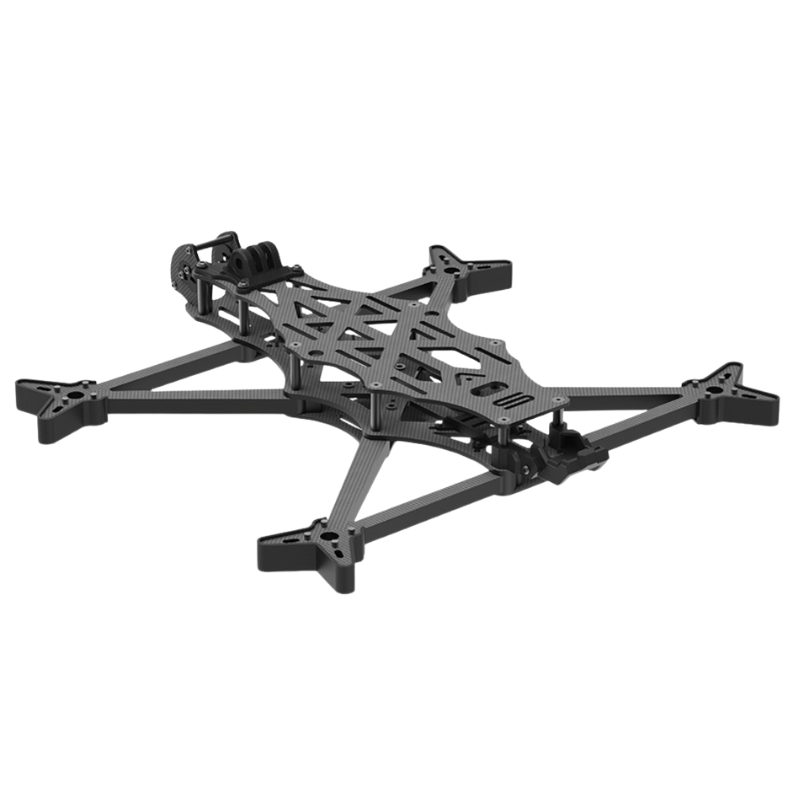

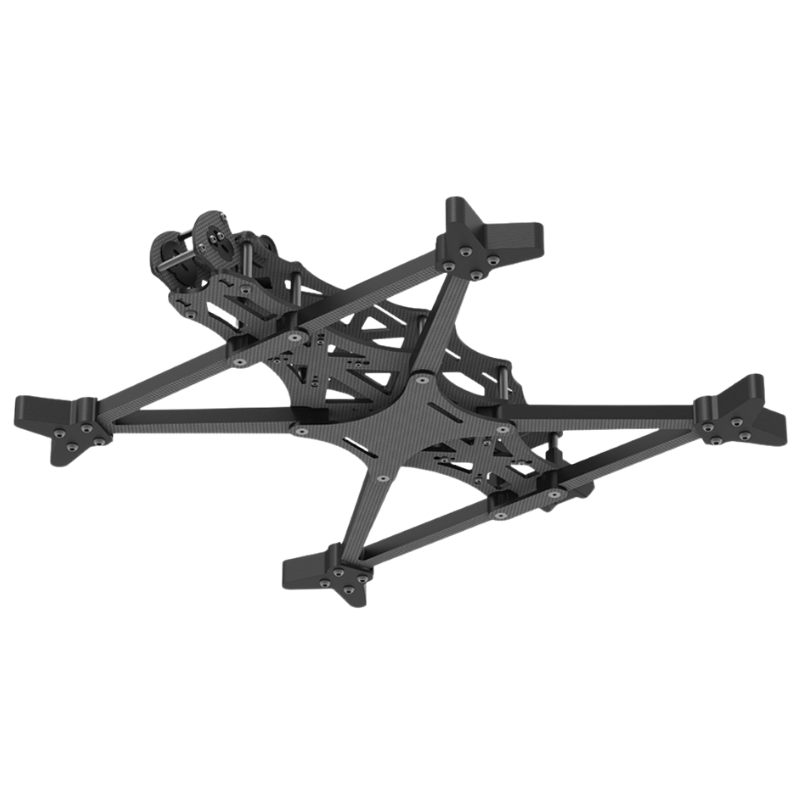

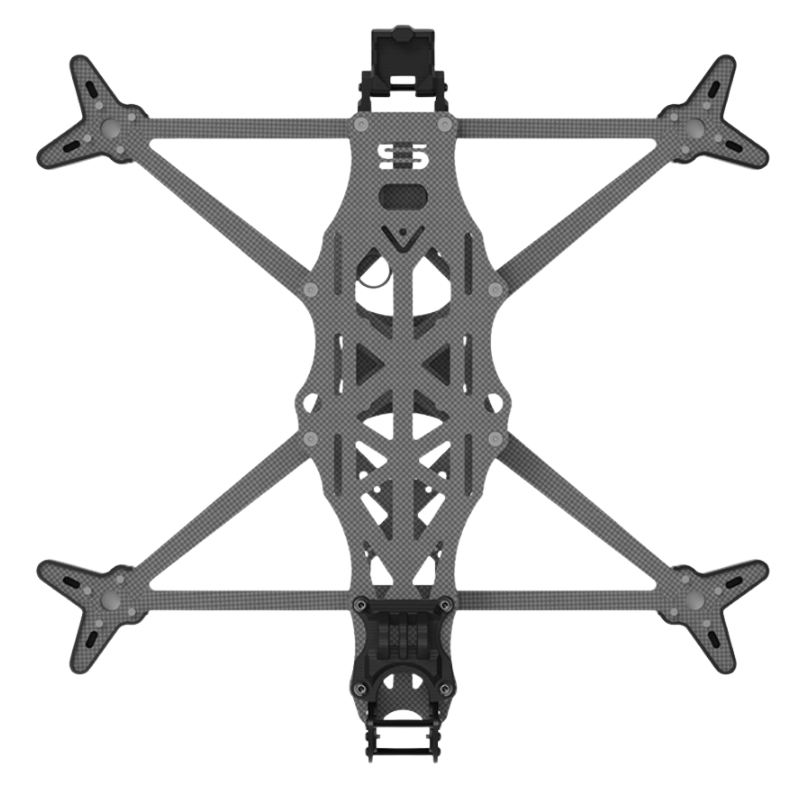

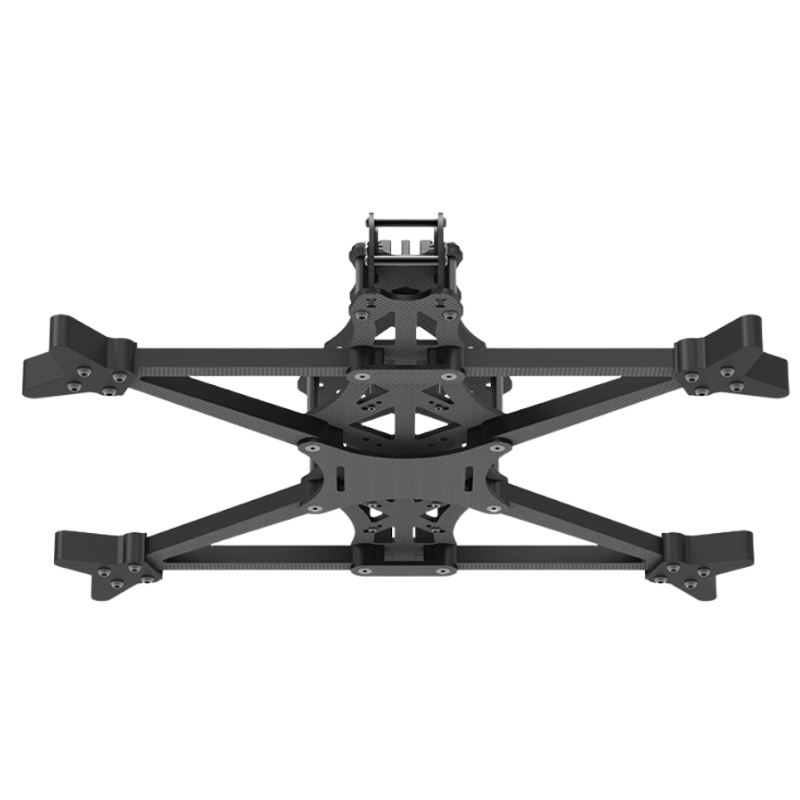

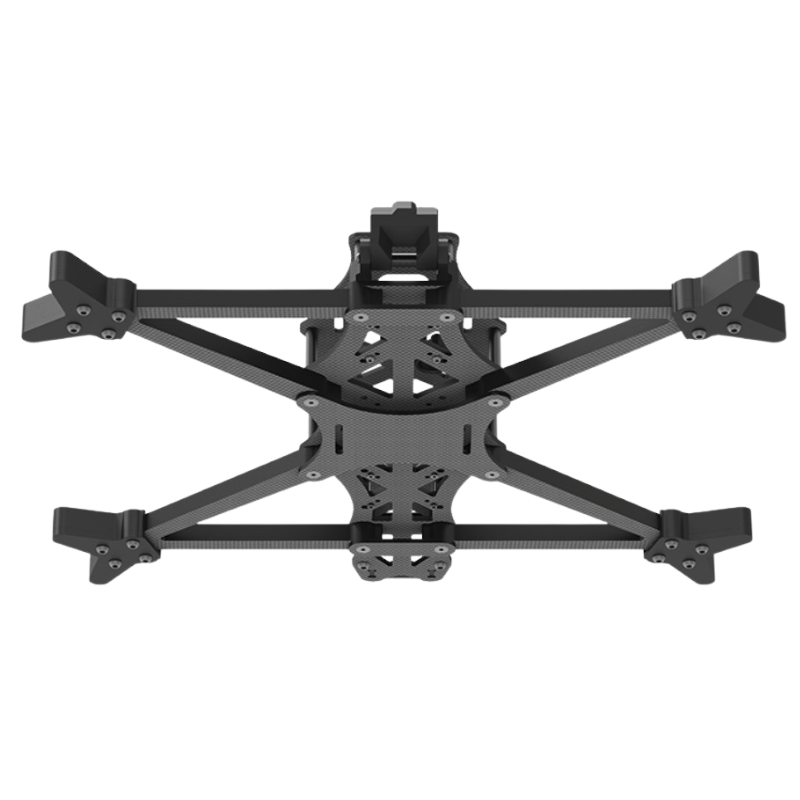

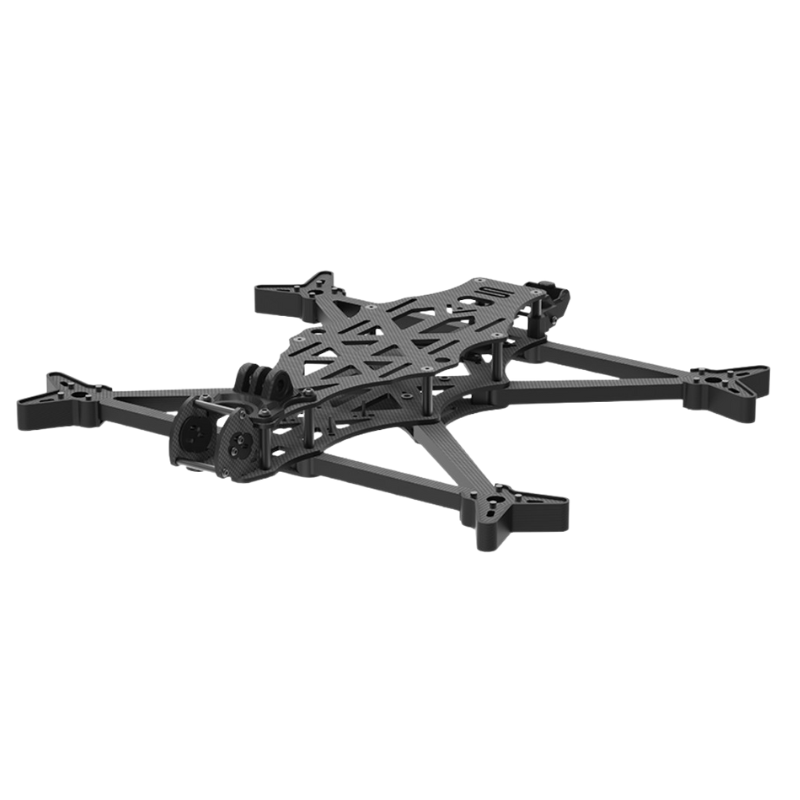

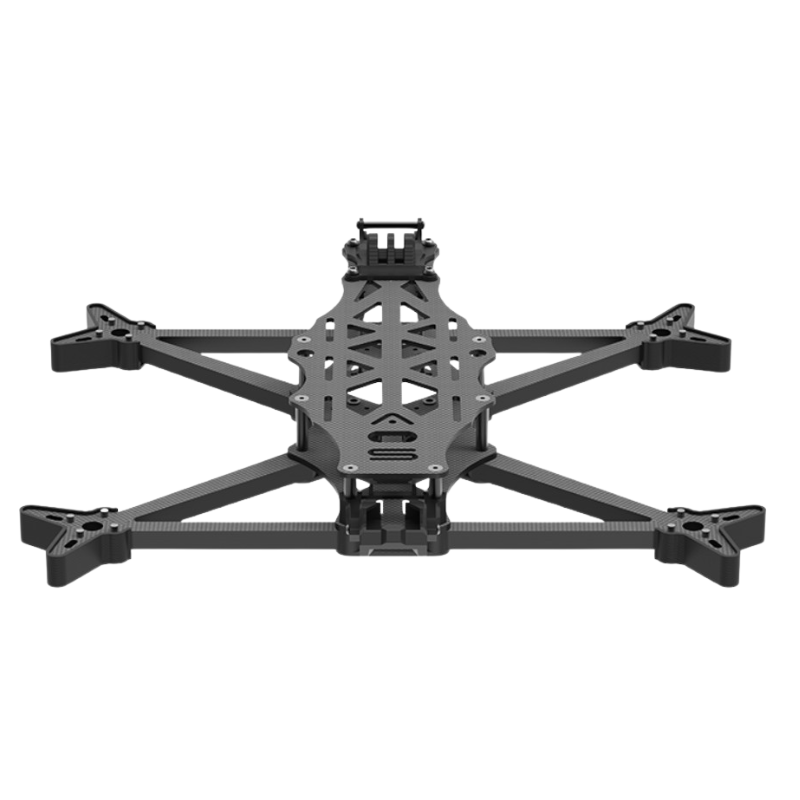

AOS 7 EVO V1.2 FRAME KIT
The latest version of this frame is the AOS 7 EVO. It has updated camera, top, and bottom plates to support the DJI O3 Air Unit and all other 19-20mm FPV cameras.
The AOS 7 builds on the scientific approach used to design the AOS 5 and AOS 5.5 extending the benefits of those designs to the 7″ class. Until now 7″ quads have been primarily used for long range cruising and have never been able to match the performance of 5″ quads for aggressive freestyle flying.
Changelog
From AOS O3 BNF/Frame kit to AOS EVO BNF/Frame kit, mainly updated side plates and silicone dampers.
June 30, 2024: Frame kit upgrade top plate with two antenna cutouts.
SPECIFICATIONS:
- Product Name: AOS 7 EVO V1.2 Frame Kit
- Frame wheelbase: 293mm
- Frame Dimension: L228*W284*H34.5 mm
- Arm Thickness: 8mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Upper Plate Thickness: 2.5mm
- Motor Mounting: 19x19mm
- VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
- Weight: 290 grams
PACKAGE CONTENTS:
- 1 x AOS 7 EVO V1.2 Frame Kit with Hardware
