Description
MARK4 7 INCH V2 FRAME KIT-T700 TORAY CF

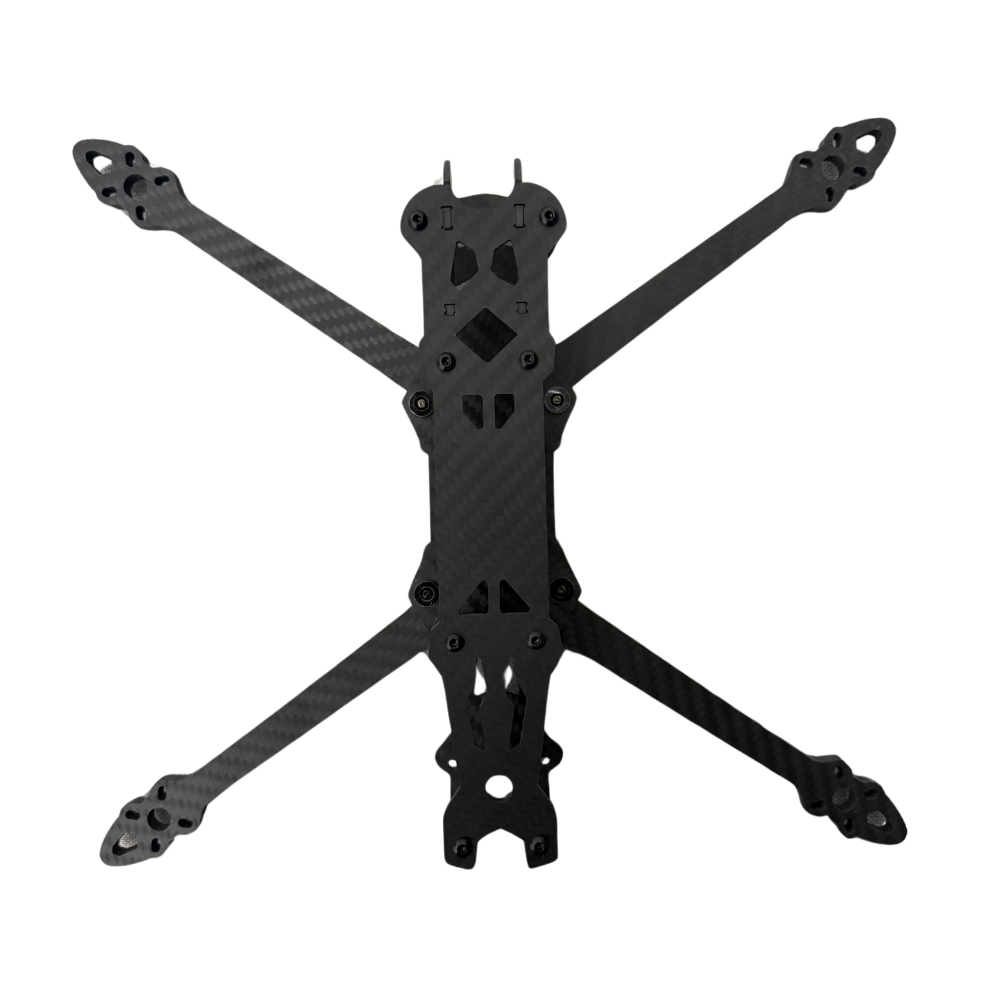

Mark4 7″ V2 is a T700 Toray carbon frame suitable for building large 7” long-range drones. The frame has a diagonal motor spacing of 311mm and massive arms made of 6mm thick T700 TORAY CF QUALITY, . The frame is designed for Micro(19mm) size cameras. The camera is mounted in carbon sidewalls to protect it. The frame can accommodate stacks with mounting holes 30,5×30,5. The rear of the frame then has space to locate a video transmitter. For the video transmitter there are mounting holes with spacing 30,5×30,5mm and 20x20mm. The motors can be used with both 16mm and 19mm M3 holes. The frame is designed for use with analog video transmission. However, more experienced drone builders can get digital video transmitters into it without much difficulty.
KEY FEATURES:
- Carbon Fiber Quality: T700 Toray
- Motor diagonal distance: 311mm
- Weight: 200g
- Mounting holes for stack: 30,5×30,5mm M3
- Mounting holes for VTX: 30.5×30.5mm M3 / 20x20mm M2
- Mounting holes for motors: 16mm / 19mm
- Arm thickness: 6mm
- Top plate: 2mm
- Middle Plate: 3mm
- Bottom plate: 2mm
- Camera size: Micro (19mm)
- Standoff Height: 25mm

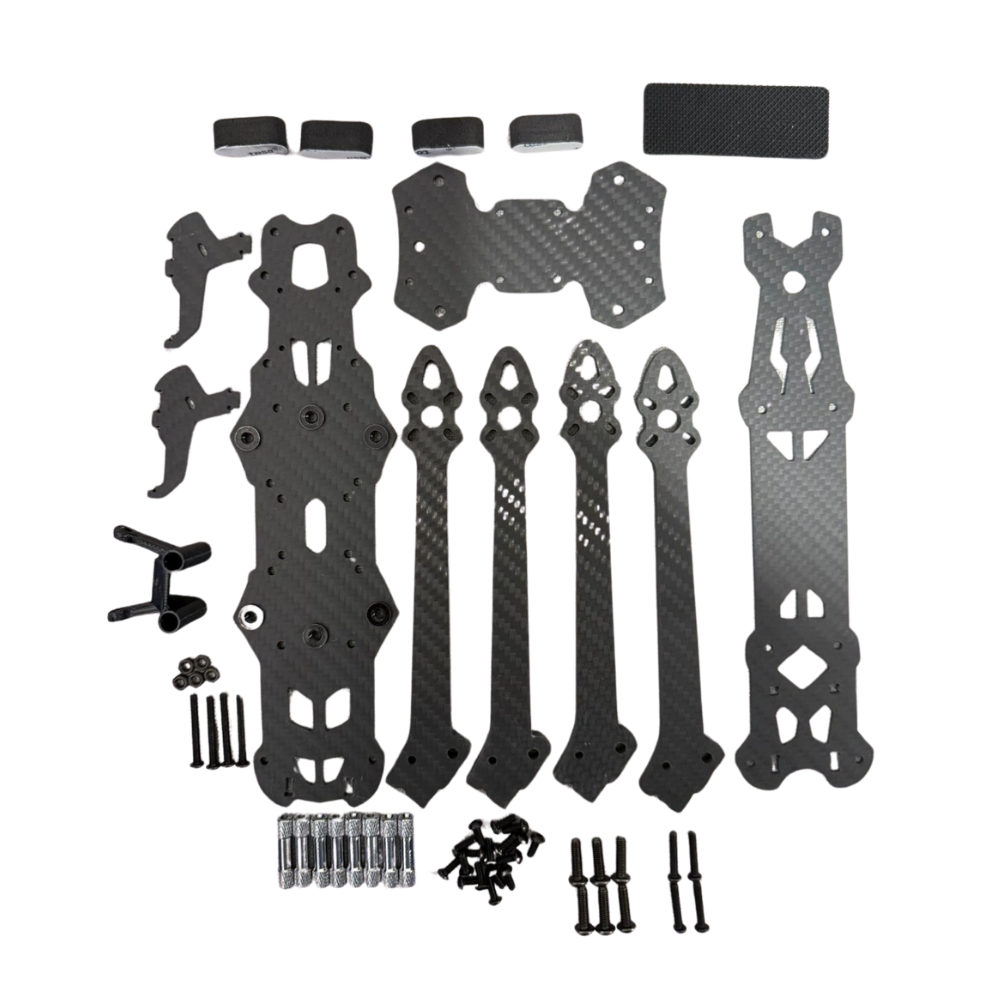

PACKAGE CONTENTS:
- 1x MARK4-7″ V2 FRAME KIT
- HARDWARE KIT
- 3D PRINTS
